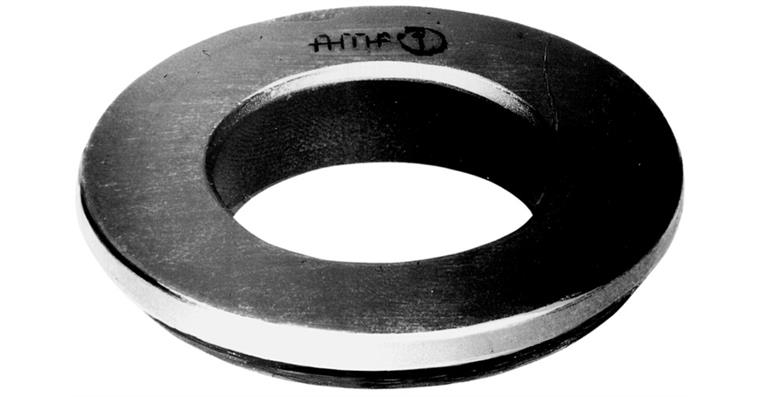

Spherical washer DIN 6319 C for screw M 6, case-hardened and phosphated

Spherical washer DIN 6319 C for screw M 6, case-hardened and phosphated

Spherical washer DIN 6319 C for screw M 6, case-hardened and phosphated
Item no: 1027016 101

Online price:

Available in 6-8 working days.

Execution
Case-hardened

Notes
Spherical washers and conical washers are used to transmit clamping forces in cases where clamping elements need to be adapted to uneven clamping surfaces. Pairing spherical washers or hexagon nuts to DIN 6330 with conical washers enables the associated clamping bolt to be swivelled out by 3°.

Brand: AMF
Suitable for screw: M6
Internal diameter (d1): 6,4 mm
Outer diameter (d3): 12 mm
Max. washer height (h2): 2,3 mm
Radius (r): 9 mm
DIN: 6319
Design: Hardened

Manufacturer part no.: 81828

EAN no.: 4020772081829

Product Datasheet
