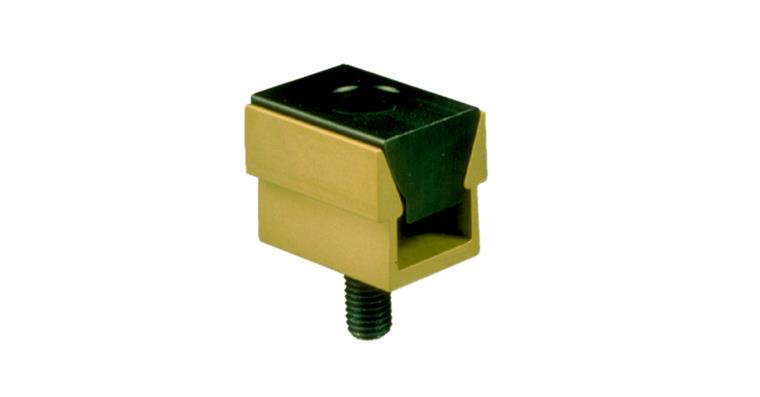

Double wedge clamping device clamping force 16.0 kN pack=2 pcs.

Double wedge clamping device clamping force 16.0 kN pack=2 pcs.

Double wedge clamping device clamping force 16.0 kN pack=2 pcs.
Item no: 1027217 104

Online price:

Available in 5-7 working days.

Application
A simple idea for an ingenious solution: Two workpieces are clamped simultaneously with one clamping element. For round and rectangular parts.

Execution
Consisting of aluminium profile and double wedge made of hardened case-hardening steel

Advantage
  • Space-saving multiple clamping reduces non-productive time and thus unit costs
  • Cost-effective clamping device


Brand: ---
Tension force: 15,6 kN
Tightening torque: 38,4 Nm
Thread dimension (Gewindeabmessung D): M12
Width across flats: 10 mm
Taper clamp width (B): 37,3 mm
Taper clamp height (H): 38,6 mm
Taper clamp length (L): 47,6 mm
Width (B1): 30,8 mm
Width 2 (B2): 38,1 mm
Height (H1): 38,1 mm
Height 2 (H2): 19 mm
Length (L1): 47,6 mm

EAN no.: 4046368815005

Product Datasheet
