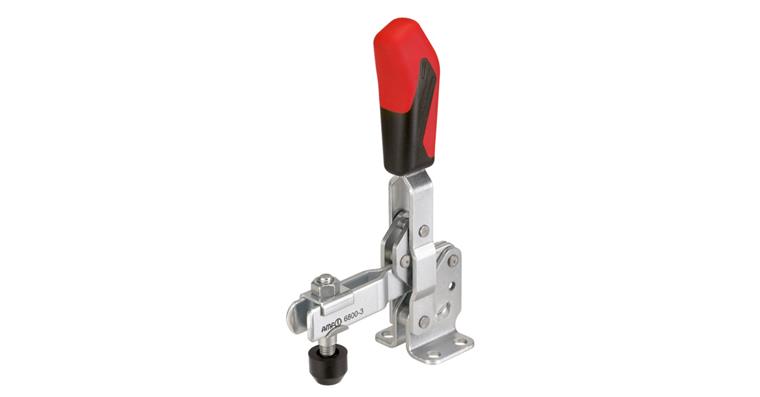

Vertical quick-action clamp horizontal base zinc-plated size 0

Vertical quick-action clamp horizontal base zinc-plated size 0

Vertical quick-action clamp horizontal base zinc-plated size 0
Item no: 1027313 101

Online price:

Available for immediate delivery

Application
For quick clamping of workpieces.

Execution
  • Zinc-plated and passivated
  • Stainless steel rivets running in case-hardened bearing bushes for sizes 2 to 5
  • Bearing points greased
  • Ergonomic, oil-resistant handle with large hand rest and soft component
  • Safety clamping piece with finger protection
  • Retainer for the pressure screw at the end of the clamping arm

Delivery
Complete with heat-treated, zinc-plated pressure screw.

Notes
For cross arms, see art. no. 1027345. Also deliverable in "STAINLESS STEEL rust-proof" and matt black finish.

Brand: AMF
Size: 0
Width (B): 31 mm
Retaining force (F1): 0,5 kN
Max. tensile force (F2): 0,7 kN
Clamping height (H): 18 mm
Height (H1): 81 mm
Length, clamped (L1): 49 mm
Length, open (L2): 50 mm
Angle (Alpha): 95 Degree
Thumbscrew size (Andrückschraube): M4 x 25 mm
Hole distance 2 min./max. (C min./max.): 8.5-13.5 mm
Bore diameter (D): 4,5 mm
Hole distance 4 (K): 5,5 mm
Hole distance (M): 23 mm
Plate width (N): 32 mm
Plate length (P): 22 mm
Weight: 60 g

Manufacturer part no.: 6800-0

EAN no.: 4020772090005

Product Datasheet
