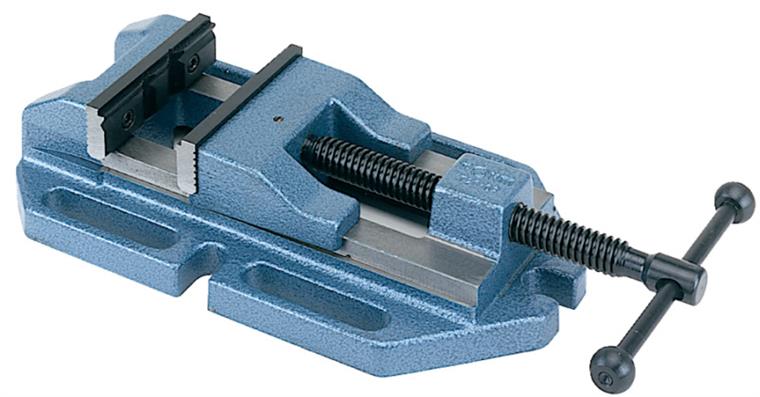

Drill vice/quick-action clamping vice fixed jaw width 160 mm

Drill vice/quick-action clamping vice fixed jaw width 160 mm

Drill vice/quick-action clamping vice fixed jaw width 160 mm
Item no: 1027534 104

Online price:

Still in stock: 4

Application
Secure clamping and fixing of workpieces on drills and measuring machines.

Execution
  • Made of grey cast iron
  • Means of attachment on side and front end
  • Long slide of movable jaws also in external clamping range
  • Both jaws have a support surface for clamping flat workpieces
  • Clamping jaws are reversible, one side is smooth or has longitudinal and lateral V-blocks, and the other side is grooved and ground on both sides


Brand: RÖHM
Jaws width: 160 mm
Clamping width: 220 mm
Jaws height: 50 mm
Max. length: 445 mm
Body width: 245 mm
Body height: 95,5 mm
Chip flute width: 17 mm
Weight: 25 kg
Elongated hole spacing: 210 mm
Size: 4

Manufacturer part no.: 111597 728-04-00

EAN no.: 4019208039442

Product Datasheet
