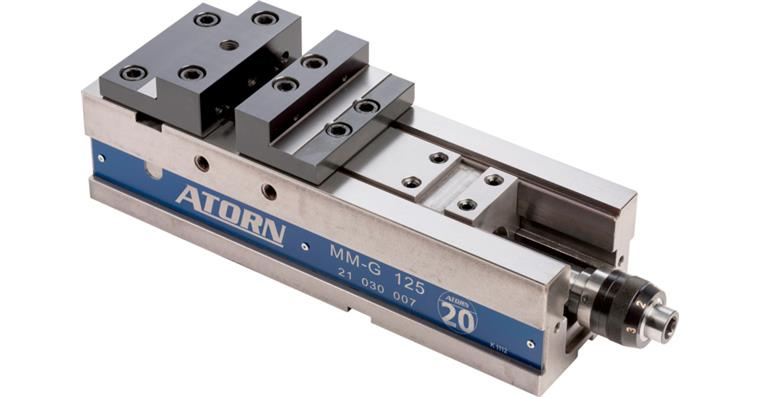

ATORN NC high-pressure machine vice MM-G 125 mm

ATORN NC high-pressure machine vice MM-G 125 mm

1027649101 ATORN NC high-pressure machine vice MM-G 125 mm
Item no: 1027649 101

Online price:

Available for immediate delivery

Application
For NC machines, machining centres, tool manufacture, mould making, fixture construction and series production.

Execution
  • With reversible stepped jaws
  • Robust cast steel basic body
  • Hardened and polished guideways
  • Preset clamping force on the drive spindle
  • Rough adjustment of the clamping range by offsetting the jaws on the clamping slide
  • Mechanical/mechanical clamping system, with power transmission via toggle joint
  • Includes clamping nipple borehole for ATORN K10.2 zero-point clamping system (gauge 200 mm)

Advantage
  • Chip guard prevents swarf penetrating inside the body
  • Largely maintenance-free
  • Clamping repeatability with identical clamping force: 0.01 mm

Delivery
1x MM-G high-pressure machine vice; including stepped jaws and hand crank

Notes
Angled gear on request.

Brand: ATORN
Jaws width: 125 mm
Jaws height: 40 mm
Body length: 400 mm
Max. length: 463 mm
Min./max. clamping width: 0-216 mm
Min./max. clamping width for reversible step jaws: 97-312 mm
Tension force: 40 kN
Weight: 41 kg
Travel stroke of gate valve: 109 mm
Offset range 2: 1 x 108 mm

ATORN-No.: 21030007

EAN no.: 4050293150285

User Manual Product Datasheet
