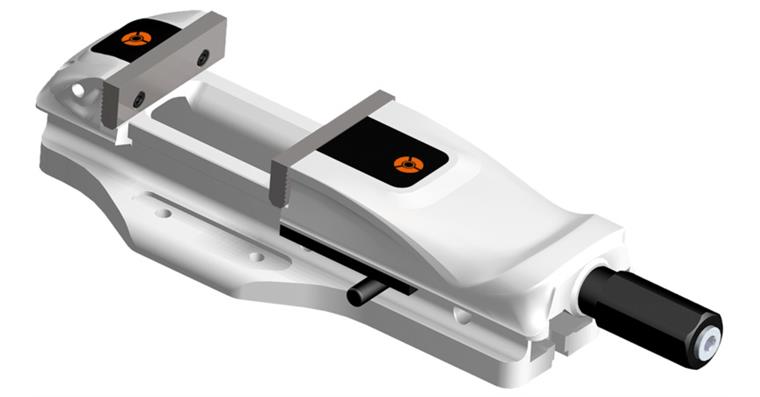

High-pressure machine vice RB BB 113 mm, mechanical-hydraulic

High-pressure machine vice RB BB 113 mm, mechanical-hydraulic

High-pressure machine vice RB BB 113 mm, mechanical-hydraulic
Item no: 1027710 101

Online price:

Available in 8-10 working days.

Application
For individual and series production on drills and milling machines.

Execution
  • Mechanical/hydraulic, with mechanical pre-clamping via hand crank
  • Clamping force can be preset via stop
  • Alignment on the machine table via longitudinal grooves
  • Rough adjustment of the clamping range via rigging pin
  • Consistent, precise clamping with clamping force 0.01 mm
  • Body made from steel, forged
  • Guideways hardened and ground

Delivery
With 1 set of standard jaws (1 side smooth, 1 side grooved) and hand crank

Notes
For workpiece stop, see art. no. 1027684. Vices with jaw width 250 and 315 mm and additional angle drive deliverable on request.

Brand: RÖHM
Jaws width: 113 mm
Min./max. clamping width: 0-170 mm
Jaws height (Backenhöhe C): 31,6 mm
Max. length (Länge D max.): 583 mm
Height (Höhe E): 97 mm
Base body height (Grundkörperhöhe G): 65,5 mm
Base body length (Grundkörperlänge F): 390 mm
Base body width (Grundkörperbreite K): 160 mm
Bore diameter (Bohrungs-Ø Q): 13 mm
Tension force: 30 kN
Weight: 24 kg
Jaws thickness: 12 mm

Manufacturer part no.: 179076

EAN no.: 4019208245447

Product Datasheet
