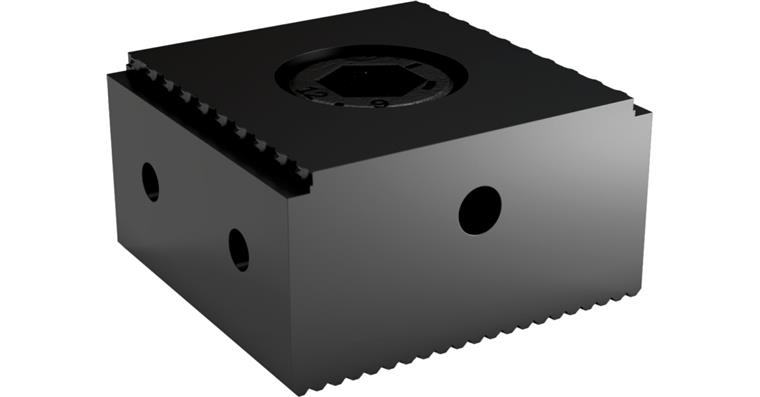

ATORN fixed jaw with claws 50x22 mm M12, incl. slot nut

ATORN fixed jaw with claws 50x22 mm M12, incl. slot nut

ATORN fixed jaw with claws 50x22 mm M12, incl. slot nut
Item no: 1027752 306

Online price:

Still in stock: 3

Application
For screwing directly onto multiple clamping rails. The fixed jaw forms a fixed stop for all types of components. For pre-milled, precision-sawn or ground parts.

Execution
  • Version with claws and 2 mm step
  • Grooves on the underside of the jaw for secure fixation at the desired position
  • With mounting hole for a stop

Advantage
  • The fixed jaw can be positioned freely on any type of multiple clamping rail
  • All module sizes fit on all clamping rail widths

Delivery
1x fixed jaw incl. sliding block and screw


Brand: ATORN
Taper clamp design: With claw fasteners
Jaws width (Backenbreite A): 50 mm
Jaws thickness (Backendicke Y): 42 mm
Jaws height (Backenhöhe C): 22 mm
Fastening thread: M12

ATORN-No.: 22940024

EAN no.: 4066107021955

Product Datasheet
