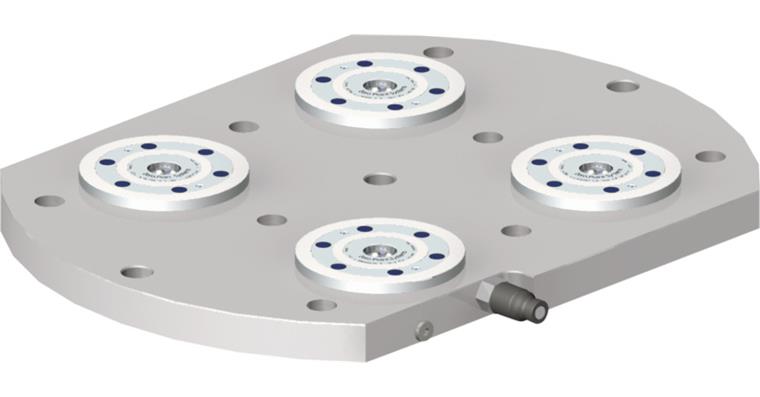

ATORN 4-way clamping station type K10.2, pitch 200 mm

ATORN 4-way clamping station type K10.2, pitch 200 mm

ATORN 4-way clamping station type K10.2, pitch 200 mm
Item no: 1027831 301

Online price:

Available in 6-8 working days.

Execution
  • Hydraulic unlocking
  • Repeat accuracy < 0.005 mm
  • Unhardened steel
  • The clamping systems are already equipped with mounting holes (for the most common table slot sizes 63, 100 and 125 mm) and positioning aids. The clamping stations are ready for immediate commissioning. Connections are already bolted
  • The clamping station with blow-out features two connections: 1x hydraulic opening, 1x pneumatic purge
  • the clamping stations are suitable for table slot sizes of 63, 100 and 125 mm

Advantage
Low overall height of only 36 mm

Delivery
1x K10.2 clamping station

Notes
Mounting sketches, other sizes as well as clamping stations especially tailored to your machine deliverable on request.

Brand: ATORN
Type: K10.2 4-way clamping station
Model: without indexing
For tensioning station: K10.2 / 2-fold | K10.2 / 4-fold | K10.2 / 6-fold
Width: 380 mm
Width 2: 200 mm
Height: 36 mm
Height 2: 8 mm
Length 2: 200 mm
Diameter: 500 mm
Adapter diameter: 20 mm
Locating bore hole diameter: 13,5 mm
Retraction force/closing force: 4 x 10 kN
Retaining force: 25 kN
Weight: 37 kg

ATORN-No.: 21710227

EAN no.: 4050293642810
