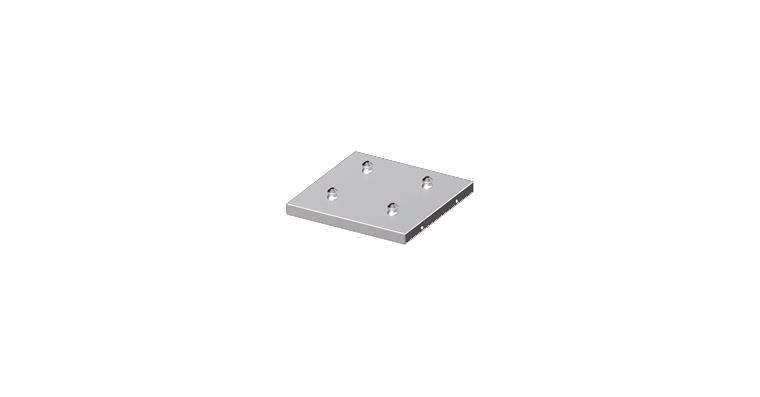

ATORN 2x replacement pallet type K 10.2 bore gauge 200 mm

ATORN 2x replacement pallet type K 10.2 bore gauge 200 mm

1027836201 ATORN 2x replacement pallet type K 10.2 bore gauge 200 mm
Item no: 1027836 201

Online price:

Available in 6-8 working days.

Execution
  • High-strength aluminium, with plane parallelism of 0.05 mm
  • Mounting holes for carry handles on the front faces of the interchangeable pallets
  • Location holes for clamping bolts pre-drilled into the plate
  • All edges with chamfer 0.5 mm x 45°
  • Pitch of clamping bolts = 200.0 mm

Advantage
  • Clamping devices can be easily and effortlessly replaced with the aid of an interchangeable plate
  • Clamping devices are secured to the interchangeable plate with clamping bolts and positioning pins

Delivery
1x interchangeable plate, incl. standard clamping bolt equipment

Notes
On request, mounting holes can be included in the replacement pallet according to your specifications. Other dimensions, actual dimensions as well as the number of clamping nipple equipment available on request.

Brand: ATORN
Type: K10.2 2-way
For tensioning station: K10.2 / 2-fold
Width: 240,0 mm
Thickness 2: 30 mm
Height: 30,0 mm
Length: 146,0 mm
Length 2: 120 mm
Distance: 100,0 mm
Connection thread: M12
Weight: 2,5 kg

ATORN-No.: 21710255

EAN no.: 4050293643084

Product Datasheet
