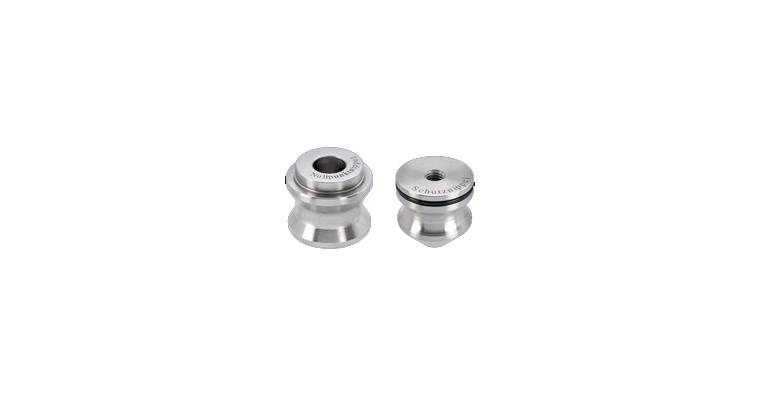

ATORN undersize clamping nipple K 20 hydraulic or pneumatic

ATORN undersize clamping nipple K 20 hydraulic or pneumatic

1027848103 ATORN undersize clamping nipple K 20 hydraulic or pneumatic
Item no: 1027848 103

Online price:

Still in stock: 6

Application
The correct arrangement of the clamping bolts ensures that the replacement pallet is always optimally positioned. The zero point clamping bolt at the same time always serves as the reference point. The strut clamping bolt acts as a balance to the free axis. The undersize clamping bolt only has a clamping and holding function.

Delivery
1x clamping bolt without locking screw


Brand: ATORN
Type: Undersize clamping bolt K20
Height: 28,0 mm
Depth: 5 mm
Diameter: 31,8 mm
Diameter 2: 25,0 mm
Diameter 3: 12,0 mm
Weight: 110,0 g

ATORN-No.: 21710161

EAN no.: 4050293154603

Product Datasheet
