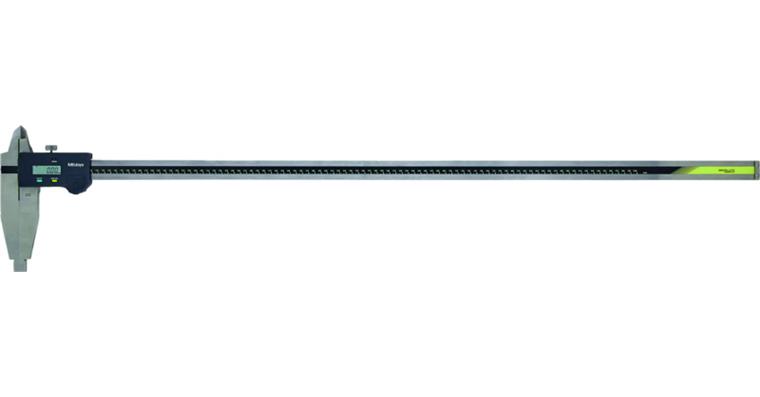

Dig. workshop callipers 0-1,000 mm, w. blade tips, data output

Dig. workshop callipers 0-1,000 mm, w. blade tips, data output

Dig. workshop callipers 0-1,000 mm, w. blade tips, data output
Item no: 1031015 603

Online price:

Available in 11-13 working days.

Application
For measuring external and internal dimensions.

Execution
  • Blade-shaped measuring surfaces allow external measurements
  • Rounded measuring surfaces allow internal measurements
  • ABSOLUTE system for reliable measurement
  • Functions: ORIGIN (ABS zero point), ON/OFF, low voltage alarm, data output

Delivery
1x box
1x battery

Notes
For connection cables, see art. no. 1035200 601, 602, 608.
For replacement batteries, see art. no. 1039900 101.

Brand: MITUTOYO
Min./max. length measuring range: 0-1000 mm
Digit increment: 0,01 mm
Length of jaw: 150 mm
Measuring tips: Yes
Inner measurement scales: 20 mm
Data transmission type: Cable | Wireless
Interface: Digimatic | USB 2.0 type A | Integrated Wireless
Length of cross tips (Länge der Messerspitzen): 56 mm
Error limit: 0,06 mm
Digit height: 11 mm
Type of locating: With locking screw
Other standard: Company standard
Calibration Group: A

Manufacturer part no.: 551-207-10

EAN no.: 4946368124872

Product Datasheet
