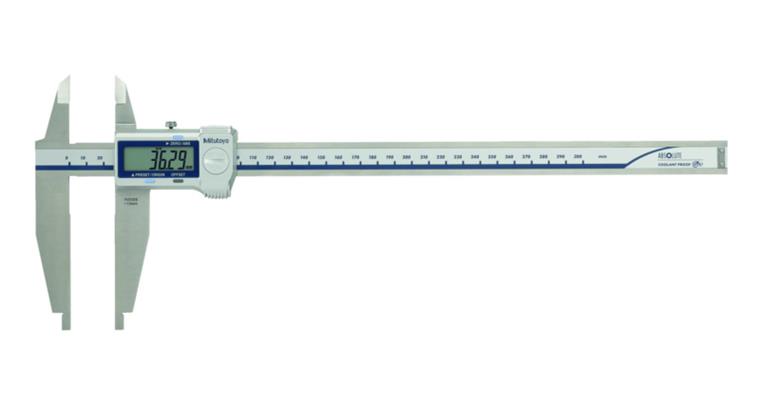

Digital workshop callipers 0-300 mm with blade tips and data output

Digital workshop callipers 0-300 mm with blade tips and data output

Digital workshop callipers 0-300 mm with blade tips and data output
Item no: 1031015 605

Online price:

Still in stock: 1

Application
For measuring external and internal dimensions.

Execution
  • Blade-shaped measuring surfaces allow external measurements
  • Rounded measuring arms enable measurement of internal diameters
  • ABSOLUTE system for reliable measurement
  • Functions: ORIGIN (ABS zero point), auto switch-off, low voltage alarm, offset (10 mm), data output
  • PRESET function only with art. no. 1031015 605

Delivery
1x box
1x battery

Notes
For connection cables, see art. no. 1035200 601, 602, 608.
For replacement batteries, see art. no. 1039900 101.

Brand: MITUTOYO
Min./max. length measuring range: 0-300 mm
Digit increment: 0,01 mm
Length of jaw: 90 mm
Measuring tips: Yes
Inner measurement scales: 10 mm
Data transmission type: Cable | Bluetooth | Wireless
IP protection class: IP 67
Interface: Digimatic | USB 2.0 type A | Bluetooth | Integrated Wireless
Length of cross tips (Länge der Messerspitzen): 40 mm
Error limit: 0,04 mm
Digit height: 11 mm
Type of locating: With locking screw
Other standard: Company standard
Calibration Group: A

Manufacturer part no.: 551-331-20

EAN no.: 4946368727110

Product Datasheet
