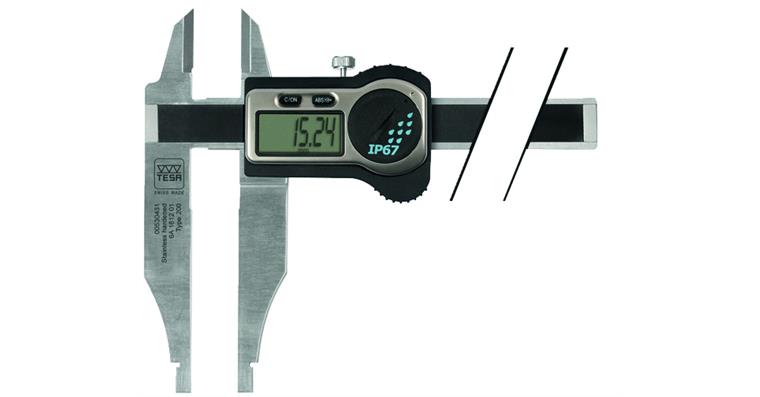

TWIN-CAL IP67 dig. workshop callipers 0-800 mm, w. blade tips, data output

TWIN-CAL IP67 dig. workshop callipers 0-800 mm, w. blade tips, data output

TWIN-CAL IP67 dig. workshop callipers 0-800 mm, w. blade tips, data output
Item no: 1031120 203

Online price:

Available in 6-8 working days.

Application
For measuring external and internal dimensions.

Execution
  • Easy to read with large, high-contrast display
  • Robust construction for durability and long-term reliability of results
  • Locking screw at the top
  • Long battery life avoids frequent battery changes
  • Send values to the computer through the TLC connection (cable or wireless)
  • ABS function
  • Functions: Sleep mode after 10 min, ABS or DIFF mode, low battery indicator, mm/inch, data transfer cable

Advantage
  • With "soft touch" coating for comfort during use
  • High degree of protection against dust and liquids (even with cap for sending data attached)

Delivery
1x 3 V battery (type CR 2032)
1x measurement report
1x declaration of conformity

Notes
Other designs deliverable on request.
For connection cable, see art. no. 1035200 315, 316.
For wireless data transmission, see art. no. 1035200 501-503.
For replacement batteries, see art. no. 1039900 102.

Brand: TESA TECHNOLOGY
Min./max. length measuring range: 0-800 mm
Digit increment: 0,01 mm
Length of jaw: 150 mm
Measuring tips: Yes
Inner measurement scales: 20 mm
Data transmission type: Bluetooth | Cable
Digit increment in inches: 0,0005 in
Min./max. length measuring range in inches: 0-32 in
IP protection class: IP 67
Interface: Bluetooth | Digimatic | USB 2.0 type A
Length of cross tips (Länge der Messerspitzen): 56 mm
Error limit: 0,04 mm
Digit height: 11 mm
Type of locating: With locking screw
ISO: 13385-1
Calibration Group: A

Manufacturer part no.: 00530436

EAN no.: 7630041106466

Product Datasheet
