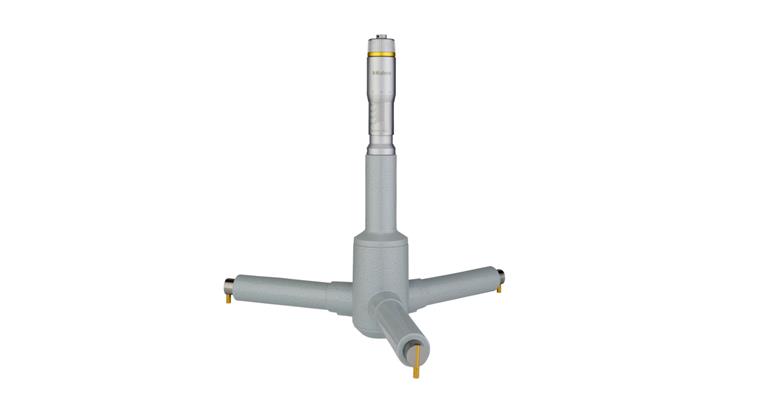

3-Punkt Innenmessschraube 125-150 mm mit TiN-beschichteten Messflächen

3-Punkt Innenmessschraube 125-150 mm mit TiN-beschichteten Messflächen

3-Punkt Innenmessschraube 125-150 mm mit TiN-beschichteten Messflächen
Item no: 1031128 113

Online price:

Still in stock: 1

Application
For measuring through-bores and short pilots

Execution
  • Semi-gloss chrome-plated thimble and sleeve
  • Measuring range 2-6 mm: Carbide
  • Measuring range 6-12 mm: Titanium-coated carbide
  • Measuring range 12-300 mm: Titanium-coated hardened steel
  • Accuracy in accordance with factory standard
  • Measuring method: 2-6 mm: 2-point measurement, 6-300 mm 3-point measurement

Advantage
Titanium-coated measuring surfaces for excellent durability and impact resistance

Delivery
1x inside micrometer
1x box
1x adjustment wrench
Factory test certificate
Without setting ring or extension


Brand: MITUTOYO
Min./max. length measuring range: 125-150 mm
Vernier scale: 0.005 mm
Measuring depth: 161 mm
Error limit: 0,005 mm
Calibration Group: I
Measuring spindle increments: 0,5 mm

Manufacturer part no.: 368-175

EAN no.: 4946368517292

Product Datasheet
