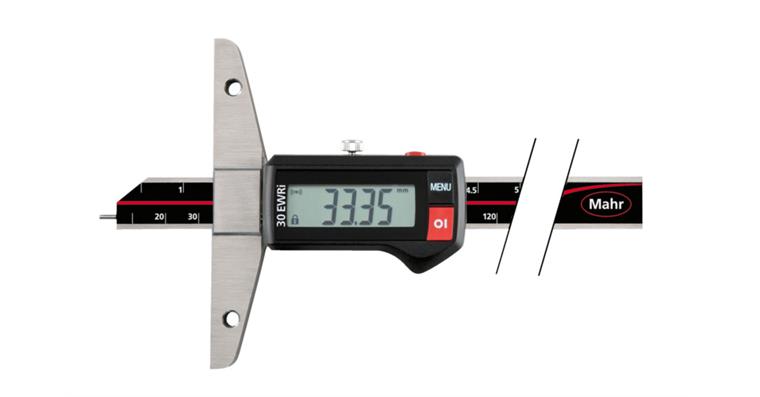

Digital depth calipers MarCal 30 EWRi IP67 MR 300 mm

Digital depth calipers MarCal 30 EWRi IP67 MR 300 mm

1031303102 Digital depth calipers MarCal 30 EWRi IP67 MR 300 mm
Item no: 1031303 102

Online price:

Still in stock: 1

Application
For universal depth, width, step and distance measurements.

Execution
  • High-contrast digital display
  • Locking screw at the top
  • Lapped guideways
  • Measuring surfaces made of hardened stainless steel
  • Hardened stainless steel slide and rail
  • Dirt scraper in the slide
  • Functions: ON/OFF, AUTO ON/OFF, RESET (sets the display to zero), mm/inch, PRESET (measurement presetting), LOCK function (key lock), HOLD (measured value storage), counting direction reversal, DATA (data transfer)

Advantage
  • Ready to measure straight away thanks to reference system
  • Raised guideways to protect the scale
  • Excellent resistance against dust, coolants and lubricants

Delivery
1x 3 V battery (type CR 2032)
1x operating instructions
1x case

Notes
For wireless receiver, see art. no. 1035200 410.
For replacement batteries, see art. no. 1039900 102.

Brand: MAHR
Min./max. length measuring range: 0-300 mm
Digit increment: 0,01 mm
Data transmission type: Wireless
Digit increment in inches: 0,0005 in
Bridge length: 150 mm
Min./max. length measuring range in inches: 0-12 in
Interface: Integrated Wireless
IP protection class: IP 67
Other standard: Company standard
Calibration Group: B
Digit height: 11 mm
Type of locating: With locking screw

Manufacturer part no.: 4126756

EAN no.: 4059192003487

Product Datasheet
