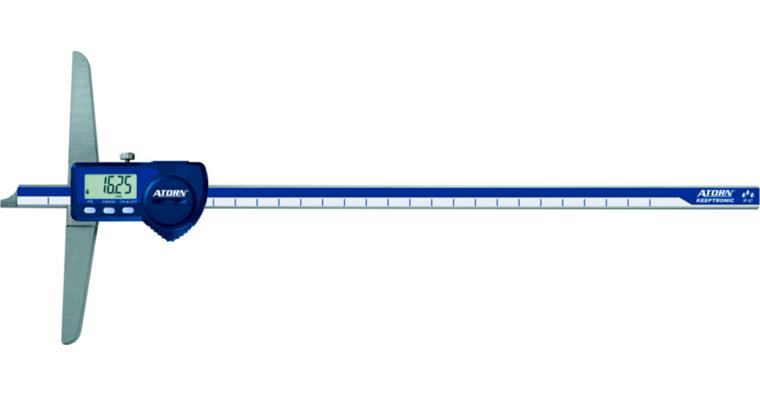

ATORN electronic depth callipers IP67, 500 mm straight rail KEEPTRONIC multiCOM

ATORN electronic depth callipers IP67, 500 mm straight rail KEEPTRONIC multiCOM

1031341302 ATORN electronic depth callipers IP67, 500 mm straight rail KEEPTRONIC multiCOM
Item no: 1031341 302

Online price:

Still in stock: 2

Application
For measuring e. g. hole depths, offsets on workpieces, etc.

Execution
  • ON/OFF
  • Zero setting at any position
  • mm/inch changeover
  • AUTO OFF
  • Hold function
  • ABS function
  • Keeptronic system
  • PRESET function

Advantage
  • Button locking prevents inadvertent adjustments
  • Switched on by moving the slider

Delivery
in a wooden case, with battery (1 x 3 V lithium, type CR 2032)

Notes
Connecting cable, see art. no. 1035200 401-403.

Brand: ATORN
Min./max. length measuring range: 0-500 mm
Data transmission type: multiCOM
Digit increment: 0,01 mm
IP protection class: IP 67
Bridge length x bridge width: 150 x 9 mm
Type of locating: With locking screw
Calibration Group: B
Display: Digital
Number of rechargeable batteries/batteries: 1 PCS
Battery designation: 3V CR2032 Lithium
ISO: 13385-2

ATORN-No.: 31059538

EAN no.: 4050293402452

Product Datasheet
