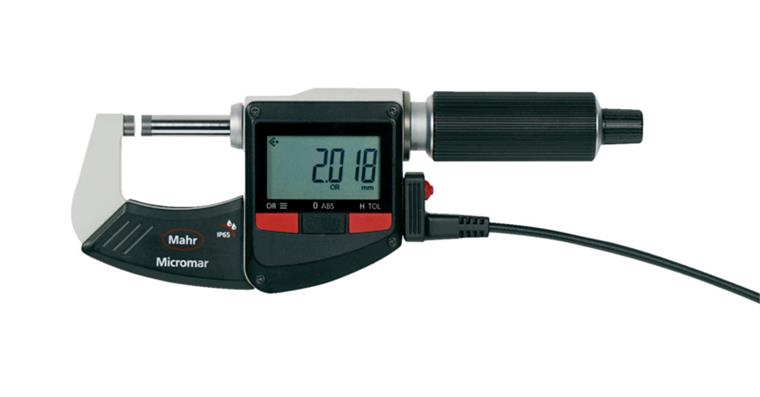

Digital micrometer Micromar 40 EWR measuring range 25-50 mm

Digital micrometer Micromar 40 EWR measuring range 25-50 mm

Digital micrometer Micromar 40 EWR measuring range 25-50 mm
Item no: 1031558 102

Online price:

Still in stock: 3

Application
For measuring e.g. shaft diameters, external dimensions on workpieces etc.

Execution
  • High-contrast digital display
  • Fully hardened and ground stainless steel measuring spindle
  • Carbide-reinforced measuring spindle and anvil
  • Quick drive
  • Ratchet tool at the front
  • Functions: RESET (sets the display to zero), ABS (display can be set to zero without losing the reference to the ORIGIN), mm/inch, ORIGIN (measurement presetting), LOCK function (key lock), TOL (input of tolerances and warning limits), HOLD (measured value storage), DATA, bi-directional data interface (external querying and input of characteristic values as well as adjustment of individual function blocks via MarCom software)
  • weitere Funktionen: ORIGIN (Maßvoreinstellung), TOL (Toleranz- und Warngrenzen-Eingabe), DATA

Advantage
Thermally insulated painted steel frame

Delivery
1x 3 V battery (type CR 2032)
1x operating instructions
1x case
1x setting gauge (from measuring range 25-50 mm)

Notes
For setting gauges, see art. no. 1031579.
For connection cables, see art. no. 1035200 415-416.
For replacement batteries, see art. no. 1039900 102.

Software: MarCom Professional free download: www.mahr.com/marcom (only for Mahr data cables and wireless systems with USB and RS232 interface).

Brand: MAHR
Min./max. length measuring range: 25-50 mm
Type: 40 EWR
Digit increment: 0,001 mm
Measuring spindle increments: 0,5 mm
Measuring surface diameter: 6,5 mm
Data transmission type: Cable
Error limit: 0,002 mm
Min./max. length measuring range in inches: 1-2 in
Digit increment in inches: 0,0005 in
IP protection class: IP 65
Interface: USB 2.0 type A | Digimatic | MarConnect
Other standard: Company standard
Spindle clamping: Yes
Digit height: 10 mm
Bracket depth: 36 mm
Min./max. measurement force: 5-10 N
Number of setting dimensions: 1 PCS
Calibration Group: D | E

Manufacturer part no.: 4157001

EAN no.: 4059192058449

Product Datasheet
