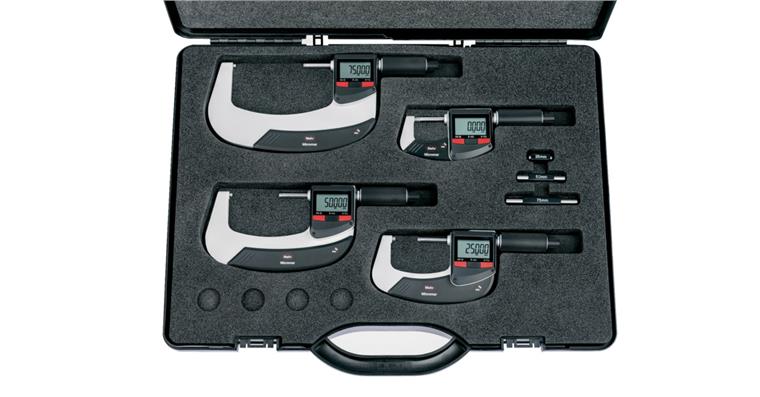

Digital micrometer set Micromar 40 EWR measuring range 0-100 mm

Digital micrometer set Micromar 40 EWR measuring range 0-100 mm

Digital micrometer set Micromar 40 EWR measuring range 0-100 mm
Item no: 1031558 301

Online price:

Available in 6-8 working days.

Application
For measuring e.g. shaft diameters, external dimensions on workpieces etc.

Execution
  • High-contrast digital display
  • Fully hardened and ground stainless steel measuring spindle
  • Measuring spindle and anvil carbide-reinforced
  • Quick drive
  • Ratchet tool at the front
  • Functions: RESET (sets the display to zero), ABS (display can be set to zero without losing the reference to the ORIGIN), mm/inch, ORIGIN (measurement presetting), LOCK function (key lock), TOL (input of tolerances and warning limits), HOLD (measured value storage), DATA, bi-directional data interface (external querying and input of characteristic values as well as adjustment of individual function blocks via MarCom software)

Advantage
Thermally insulated painted steel frame

Delivery
- 3 V battery (type CR 2032)
- Operating instructions
- In case
- Setting gauge

Notes
For setting gauges, see art. no. 1031579.
For connection cables, see art. no. 1035200 415-416.
For replacement batteries, see art. no. 1039900 102.

Software: MarCom Professional free download: www.mahr.com/marcom (only for Mahr data cables and wireless systems with USB and RS232 interface).

Brand: MAHR
Min./max. length measuring range: 0-100 mm
Digit increment: 0,001 mm
Number of bracket measuring screws: 4 PCS
Composition of set: 0-25 mm | 25-50 mm | 50-75 mm | 75-100 mm | setting gauges
Measuring spindle increments: 0,5 mm
Measuring surface diameter: 6,5 mm
Min./max. measurement force: 5-10 N
Min./max. length measuring range in inches: 0-4 in
Digit increment in inches: 0,00005 in
Spindle clamping: Yes
Digit height: 10 mm
IP protection class: IP 65
Functions: Reset (Zeroing the display) | Preset function
Data transmission type: Cable
Number of setting dimensions: 3 PCS
Calibration Group: D | E

Manufacturer part no.: 4157015

EAN no.: 4059192058517

Product Datasheet
