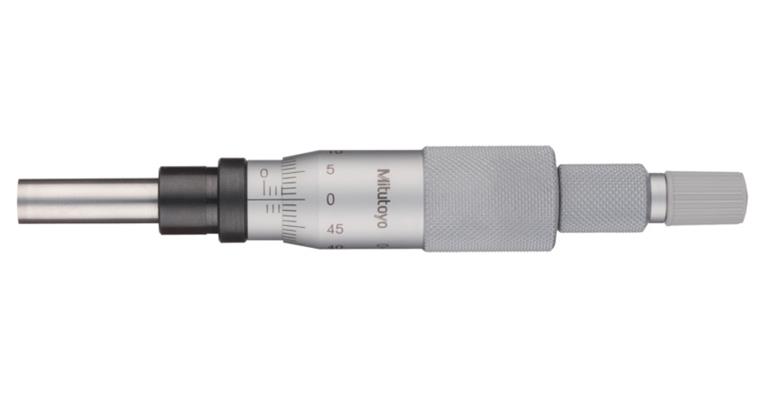

Einbaumessschraube 0-25mm mit nicht drehender Spindel flach ohne Klemmmutter

Einbaumessschraube 0-25mm mit nicht drehender Spindel flach ohne Klemmmutter

Einbaumessschraube 0-25mm mit nicht drehender Spindel flach ohne Klemmmutter
Item no: 1031722 103

Online price:

Still in stock: 1

Application
For installation in measuring and pre-adjustment devices and for use as setting and control elements in machine tools

Execution
  • Hardened steel measuring surfaces
  • Cylindrical clamping shank


Brand: MITUTOYO
Min./max. length measuring range: 0-25 mm
Type: flach ohne Klemmmutter, nicht drehende Spindel
Vernier scale: 0.01 mm
Clamp in shank diameter: 12 mm
Measuring surface diameter: 8 mm
Shaft length: 10 mm
Installation length: 27 mm
Diameter: 18 mm
Measuring spindle increments: 0,5 mm
Error limit: 0,003 mm
Other standard: Company standard

Manufacturer part no.: 153-201

EAN no.: 4946368023151

Product Datasheet
