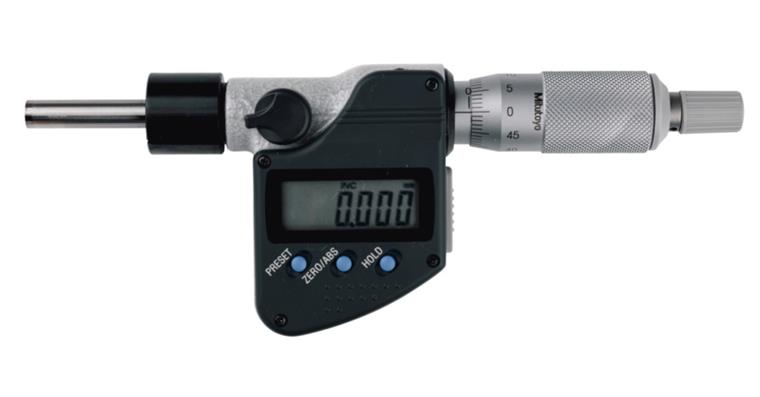

Digitale Einbaumessschraube 0-25mm flach ohne Klemmmutter IP65

Digitale Einbaumessschraube 0-25mm flach ohne Klemmmutter IP65

Digitale Einbaumessschraube 0-25mm flach ohne Klemmmutter IP65
Item no: 1031722 200

Online price:

Available in 11-13 working days.

Application
For installation in measuring and pre-adjustment devices and for use as setting and control elements in machine tools

Execution
  • Funktionen 1031722200: ABS / INC (INC ZERO), Auto. Abschaltung nach 20 min. ohne Funktion, Funktionssperre, HOLD, 2 x PRESET
  • Funktionen 1031722201: ABS / INC (INC ZERO), Auto. Abschaltung nach 20 min. ohne Funktion, 2 x PRESET, Zählrichtung umschaltbar
  • Functions 1031722200: ABS/INC (INC ZERO), automatic switch-off after 20 minutes of inactivity, function lock, HOLD, 2x PRESET
  • Functions 1031722201: ABS/INC (INC ZERO), automatic switch-off after 20 minutes of inactivity, 2x PRESET, counting direction reversible

Delivery
1x micrometer head
SR-44 batteries


Brand: MITUTOYO
Min./max. length measuring range: 0-25 mm
Type: ohne Klemmmutter
Digit increment: 0,001 mm
Clamp in shank diameter: 12 mm
Measuring surface diameter: 6,35 mm
Shaft length: 16 mm
Installation length: 27 mm
Measuring spindle increments: 0,5 mm
Error limit: 0,002 mm
Data transmission type: Cable | Wireless | Bluetooth
Interface: USB 2.0 type A | Bluetooth | Integrated Wireless | Digimatic
IP protection class: IP 65
Other standard: Company standard
Spindle clamping: Yes

Manufacturer part no.: 350-271-30

EAN no.: 4946368695976
