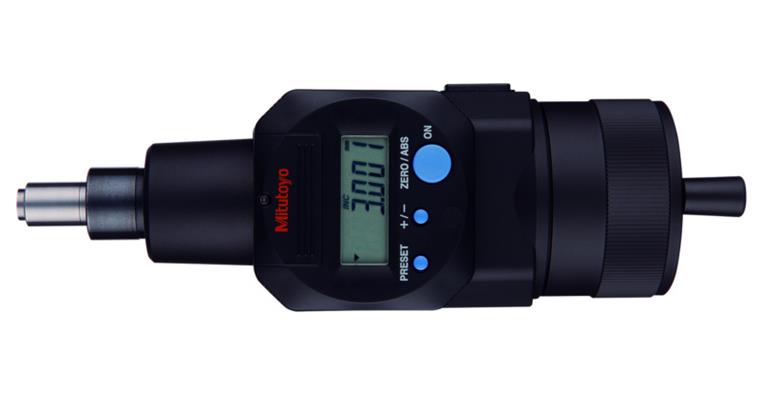

Digitale Einbaumessschraube 0-50mm nicht drehende Spindel flach ohne Klemmmutter

Digitale Einbaumessschraube 0-50mm nicht drehende Spindel flach ohne Klemmmutter

Digitale Einbaumessschraube 0-50mm nicht drehende Spindel flach ohne Klemmmutter
Item no: 1031722 201

Online price:

Available in 11-13 working days.

Application
For installation in measuring and pre-adjustment devices and for use as setting and control elements in machine tools

Execution
  • Funktionen 1031722200: ABS / INC (INC ZERO), Auto. Abschaltung nach 20 min. ohne Funktion, Funktionssperre, HOLD, 2 x PRESET
  • Funktionen 1031722201: ABS / INC (INC ZERO), Auto. Abschaltung nach 20 min. ohne Funktion, 2 x PRESET, Zählrichtung umschaltbar
  • Functions 1031722200: ABS/INC (INC ZERO), automatic switch-off after 20 minutes of inactivity, function lock, HOLD, 2x PRESET
  • Functions 1031722201: ABS/INC (INC ZERO), automatic switch-off after 20 minutes of inactivity, 2x PRESET, counting direction reversible

Delivery
1x micrometer head
SR-44 batteries


Brand: MITUTOYO
Min./max. length measuring range: 0-50 mm
Type: flach ohne Klemmmutter, nicht drehende Spindel
Digit increment: 0,001 mm
Clamp in shank diameter: 18 mm
Measuring surface diameter: 8 mm
Shaft length: 14 mm
Installation length: 65 mm
Diameter: 52,2 mm
Measuring spindle increments: 0,5 mm
Error limit: 0,003 mm
Data transmission type: Cable | Wireless
Interface: Integrated Wireless | Digimatic | USB 2.0 type A
Other standard: Company standard

Manufacturer part no.: 164-163

EAN no.: 4946368610276
