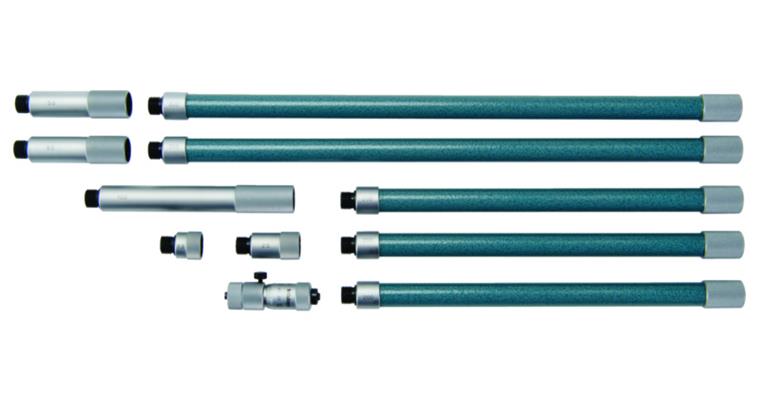

2-Punkt-Innenmessschraubensatz 50-1500mm mit St-Messflächen u. 10 Verlängerungen

2-Punkt-Innenmessschraubensatz 50-1500mm mit St-Messflächen u. 10 Verlängerungen

2-Punkt-Innenmessschraubensatz 50-1500mm mit St-Messflächen u. 10 Verlängerungen
Item no: 1031747 205

Online price:

Still in stock: 1

Application
For measuring bore diameters, distances on workpieces etc.

Execution
  • Replaceable cylindrical extension poles to increase the measuring range
  • Hardened steel measuring surfaces
  • Measuring range 13 mm
  • Extensions dia. 12.5 mm

Delivery
1x micrometer
1x box
1x adjustment wrench
Extensions


Brand: MITUTOYO
Min./max. length measuring range: 50-1500 mm
Composition of set: Messkopf 50-63 mm
Verlängerungen 13 mm, 25 mm, 50 mm (2x), 100 mm, 200 mm (3x), 300 mm (2x)
Vernier scale: 0.01 mm
Error limit: 0,003 mm
Number of measurement heads: 1 PCS
Number of extensions: 10 PCS
Number of setting rings: 0 PCS
Calibration Group: H | J

Manufacturer part no.: 137-205

EAN no.: 4946368438368

Product Datasheet
