Digital Innenmessschrauben-Satz 20-50 mm Micromar 44 EWR

Digital Innenmessschrauben-Satz 20-50 mm Micromar 44 EWR

1031927203 Digital Innenmessschrauben-Satz 20-50 mm Micromar 44 EWR
Item no: 1031927 203

Online price:

Will be ordered for you

Application
Messung von Durchgangs- und Sacklochbohrungen sowie Zentrierrändern.

Execution
  • leichte und kompakte Messschraubeneinheit aus Kunststoff
  • Korrosions- und verschleißgeschützte Messköpfe
  • Selbstzentrierender Messkopf mit drei seitlich austretenden, um 120° versetzten Messtastern
  • mit Gefühlsratsche
  • Ergonomische Form mit großem LCD-Display
  • Optimale Konnektivität durch bidirektionale Datenschnittstelle
  • Funktionen: ON/OFF, AUTO ON/OFF, RESET (Nullsetzen der Anzeige), TOL (Toleranzeingabe), <0> (Modus der Toleranzanzeige), mm/inch, 3xPRESET (Maßvoreinstellung), ABS (Anzeige kann auf Nul gesetzt werden ohne den Bezug zum Preset zu verlieren), DATA (in Verbindung mit Datenverbindungskabel), LOCK (individuelle Tastensperre), HOLD-Funktion

Advantage
Einstellungen, individuelle Sperrfunktionen sowie Fernsteuerung kompfortabel am PC per kostenloser Software MarCom Professional

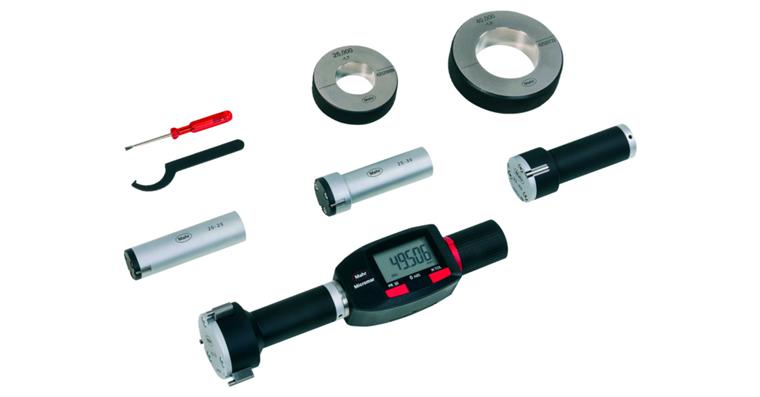

Delivery
Messelement
Messköpfe 44 Ak
Einstellringe
Batterie (Typ CR 2450)
Schlüssel
Bedienungsanleitung


Brand: MAHR
Min./max. length measuring range: 20-50 mm
Composition of set: Messköpfe 20-25 mm | 25-30 mm | 30-40 mm | 40-50 mm | Einstellring 25 mm | 40 mm
Digit increment: 0,001 mm
Digit increment in inches: 0,00005 in
Error limit: 0,004 mm
Number of measurement heads: 4 PCS
Number of setting rings: 2 PCS
IP protection class: IP 65
Digit height: 10 mm
Interface: Digimatic | USB 2.0 type A
Data transmission type: Cable
Other standard: Company standard
Calibration Group: I | AC

Manufacturer part no.: 4191242

EAN no.: 4059192064990
