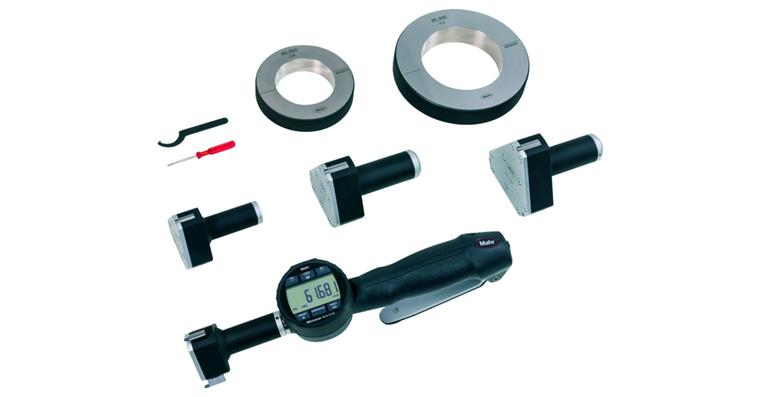

Digital Innenmessgerät-Satz 50-100 mm Micromar 844 EWR

Digital Innenmessgerät-Satz 50-100 mm Micromar 844 EWR

1031929204 Digital Innenmessgerät-Satz 50-100 mm Micromar 844 EWR
Item no: 1031929 204

Online price:

Will be ordered for you

Application
Messung von Durchgangs- und Sacklochbohrungen sowie Zentrierrändern mit gleichbleibender Messkraft.

Execution
  • Für Links- und Rechtshänder geeigneter neuer ergonomischer Griff
  • iduktives Messsystem
  • Messwertklassierung mit farbiger LED-Anzeige
  • geferdete Messkraft sorgt für reproduzierbare Messungen
  • Bedien- und Anzeigeteil um 280° drehbar
  • moderne Touch Bedienung
  • robustes Display aus gehärtetem Glas
  • Optimale Konnektivität durch bidirektionale Datenschnittstelle
  • Einzigartige und praktische Bedientasten im Rückzughebel (Hold und DATA)
  • Funktionen: ON/OFF, RESET (Nullsetzen der Anzeige), TOL (Toleranzeingabe), <0> (Modus der Toleranzanzeige), mm/inch, 3xPRESET (Maßvoreinstellung), ABS (Anzeige kann auf Nul gesetzt werden ohne den Bezug zum Preset zu verlieren), DATA (in Verbindung mit Datenverbindungskabel), LOCK (individuelle Tastensperre)

Advantage
Einstellungen, individuelle Sperrfunktionen sowie Fernsteuerung kompfortabel am PC per kostenloser Software MarCom Professional

Delivery
Messelement
Stoßschutzring 1086 sr
Messköpfe 44 Ak
Einstellringe
Batterie (Typ CR 2450)
Schraubendreher
Innensechskantschlüssel SW 2,5mm
Bedienungsanleitung


Brand: MAHR
Min./max. length measuring range: 50-100 mm
Composition of set: Messköpfe 50-60 mm | 60-70 mm | 70-85 mm | 85-100 mm | Einstellring 60 mm | 85 mm
Digit increment: 0,001 mm
Digit increment in inches: 0,00005 in
Error limit: 0,005 mm
Number of measurement heads: 4 PCS
Number of setting rings: 2 PCS
IP protection class: IP 65
Interface: Digimatic | USB 2.0 type A
Data transmission type: Cable
Other standard: Company standard
Calibration Group: I | AC

Manufacturer part no.: 4192243

EAN no.: 4059192065447
