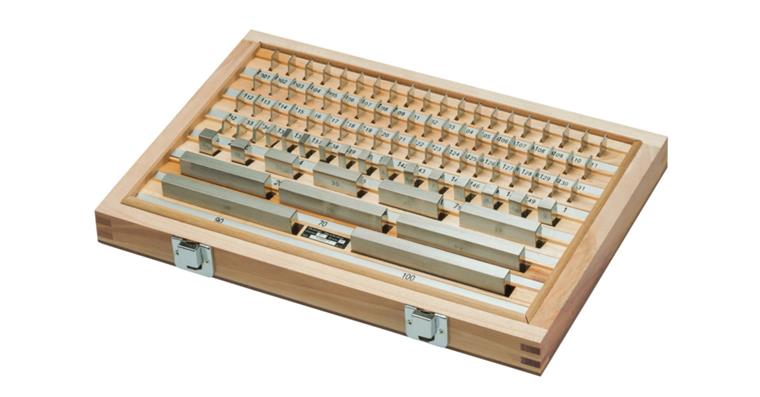

Metric parallel gauge block set DIN/EN ISO 3650 tol. class 0 87 pieces

Metric parallel gauge block set DIN/EN ISO 3650 tol. class 0 87 pieces

Metric parallel gauge block set DIN/EN ISO 3650 tol. class 0 87 pieces
Item no: 1032004 103

Online price:

Available in 8-10 working days.

Application
For testing and calibrating measuring instruments and test equipment.

Execution
  • Carefully selected, high-quality, alloyed special steel, aged, hardened and hand-lapped
  • aus speziell legiertem und entspanntem Spezialstahl von hoher Stabilität und mit gutem Haftvermögen

Delivery
1x gauge block set
1x wooden case
1x manufacturer certificate

Notes
Factory or DAkkS calibration upon request

Brand: LIZZARD
Number of pieces in assortment/set: 87 PCS
Nominal dimension in assortment: 10-100 mm, increasing by 10 mm | 1.01-1.49 mm, increasing by 0.01 mm | 0.5-9.5 mm, increasing by 0.5 mm | 1.001-1.009 mm, increasing by 0.001 mm
Tolerance class: 0
Material: Gauge steel
ISO: 3650
Calibration Group: AF

EAN no.: 4024496072668

Product Datasheet
