Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 3 6H

Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 3 6H

Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 3 6H
Item no: 1032413 209

Online price:

Still in stock: 6

Application
For testing the flank diameter of female threads and compliance with minimum dimensions of the external diameter

Execution
  • Hardened and finely ground
  • Right-hand thread
  • Tolerance 6H (M1-M1.4 tolerance 5H)
  • Go side with full thread profile (must screw into the test specimen without the use of force)
  • Scrap side with shortened thread flanks and only a few turns (must not screw in)
  • Best gauge steel

Notes
Special gauges deliverable in all dimensions, tolerances and set combinations on request.

Brand: JBO
Calibration Group: AA
Thread type: Metric thread
Thread type x nominal diameter x pitch: M3 x 0.5
Pitch: 0,5 mm
Tolerance class: 6H
Material: Gauge steel
DIN: 13 | 2280

Manufacturer part no.: 512036

EAN no.: 4046122116201

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN mini cut insert S, grooving int. radius D min = 8.4mm A8 0.8mm x 0.4mm
  •
    Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 5 6H
    41,80 €
  • Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 7 6H
    44,70 €
  • Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 8 6H
    41,80 €
  • Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 9 6H
    55,60 €
  • Thread go ring gauge, standard ISO thread, DIN 2285 nom. dia. M 3 6g
    69,72 €
  • Thread go ring gauge, standard ISO thread, DIN 2285 nom. dia. M 7 6g
    62,66 €
  • Thread go ring gauge, standard ISO thread, DIN 2285 nom. dia. M 9 6g
    70,06 €
  • Soldering wire (lead-free) dia. 0.50 mm, 250g, flux content 2.5%, fine soldering
    57,94 €
  • Soldering wire (lead-free) dia. 1.50 mm, 250g, flux content 2.5%, fine soldering
    57,58 €
  • Soldering wire (lead-free) dia. 2.00 mm, 250g, flux content 2.5%, fine soldering
    57,41 €

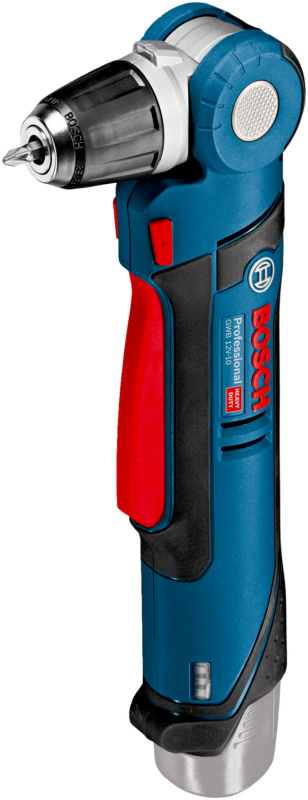

  • GWB 12V-10 cordless angle drill (without battery/charger)
