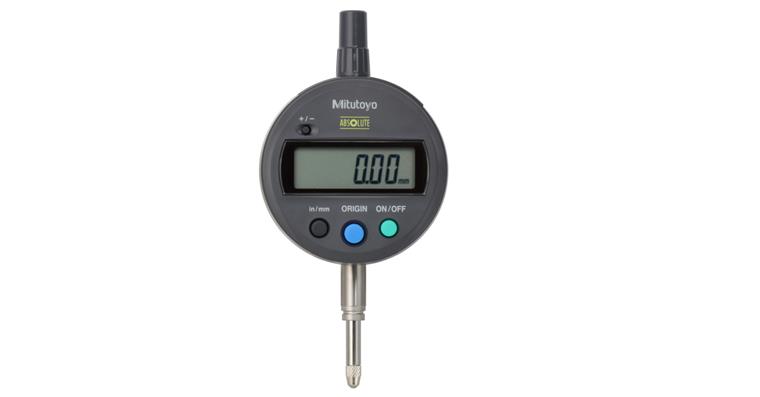

Digitale Messuhr ID-S, 12,7 mm, 0,01 mm Zoll, IP42, ISO

Digitale Messuhr ID-S, 12,7 mm, 0,01 mm Zoll, IP42, ISO

Digitale Messuhr ID-S, 12,7 mm, 0,01 mm Zoll, IP42, ISO
Item no: 1033019 103

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • ABSOLUTE system. One-time setting of the starting position, which then remains the absolute zero point until the next battery change
  • All functions can be adjusted using large and user-friendly buttons
  • Mühelose Ablesung durch 9 mm große Ziffern
  • Funktionen: ON/OFF, ORIGIN (ABS Nullpunkt), Zählrichtung umkehrbar, Digimatic Datenausgabe

Notes
This digital dial gauge is equipped with a data output, but does not feature an integrated data button. The USB Input Tool Direct cable (optional accessory) and the USB-ITPAK software are required for data transfer.

Brand: MITUTOYO
Length measuring range: 12,7 mm
Max. length measuring range in inches: 0,5 in
Type: Rückwand mit Öse - ISO
Digit increment: 0,01 mm
Digit increment in inches: 0,0005 in
Error limit: 0,02 mm
Data transmission type: Bluetooth | Wireless | Cable
Repeat accuracy: 0,01 mm
IP protection class: IP 42
Dynamic measurement: No
Shank diameter: 8 mm
Digit height: 9 mm
Calibration Group: CD
Outer diameter: 59 mm

Manufacturer part no.: 543-782-10

EAN no.: 4946368863474

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Machine tap G DIN 5156 shape C 2.5xD HSS-E 1/8 inch
  •
    Machine tap G DIN 5156 shape C 2.5xD HSS-E 1/8 inch
    33,75 €
  • Support plate (18471 738) for ISO indexable insert holders
  •
    ATORN inside micrometer set, analogue, 50-100 mm measuring range, in case
    2.565,20 €
  • Work swivel chair Labsit glide runners PU foam white seat height 520-770mm
  •
    Drill and reamer extension DIN 228 B L=250 mm MK 1/1
  •
    TWIN-CAL IP67 digital pocket vernier callipers 0-150 mm with data output
    154,00 €
  • DUSPOL expert two-pole voltage and continuity tester 12-1,000 V AC/DC
    106,70 €
  • Handling lifting table HTH 20-820 lifting load 2000 kg
    3.123,00 €
  • Rotary hammer drill GBH 4-32 DFR set SDS-plus/SSBF 900 watts 4.2 J
  •
    ATORN interch. jaw grips soft pointed 57x24x31 mm 1.5 mmx60° M8 E 14 mm
  •

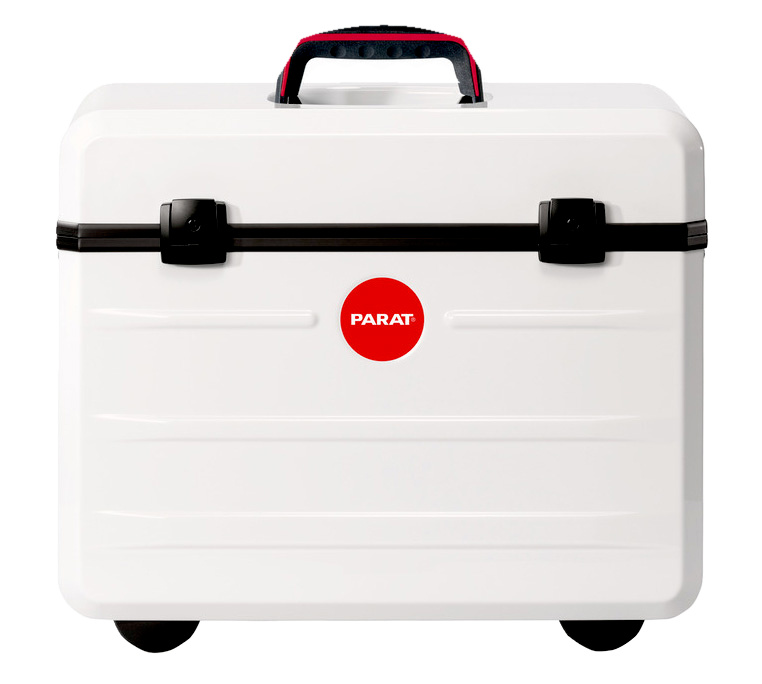

    Empty tool case Protect 20
