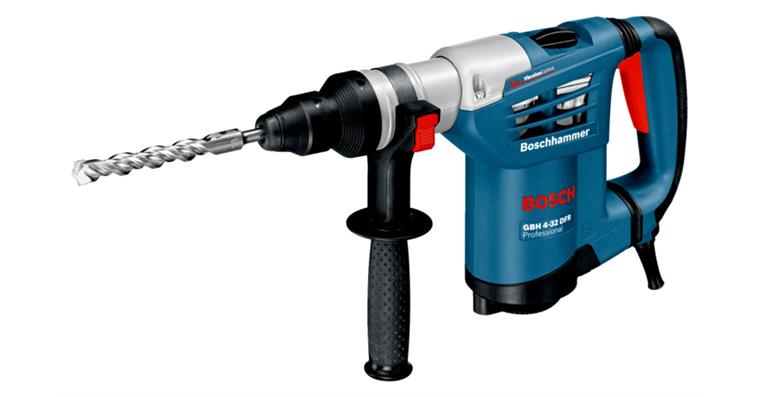

Rotary hammer drill GBH 4-32 DFR set SDS-plus/SSBF 900 watts 4.2 J

Rotary hammer drill GBH 4-32 DFR set SDS-plus/SSBF 900 watts 4.2 J

1090090301 Rotary hammer drill GBH 4-32 DFR set SDS-plus/SSBF 900 watts 4.2 J
Item no: 1090090 301

Online price:

Available in 6-8 working days.

Application
For drilling and chiselling with pneumatic impact mechanism in stone and concrete.

Execution
  • Overload coupling
  • Vibration Control vibration damping
  • Stepless speed control
  • Carter d'engrenages en aluminium
  • replacement chuck for switching rapidly between drilling with impact in concrete and drilling without impact in wood and metal

Advantage
The clutch claws are unlocked and the torque is minimised to prevent abrupt blocking of the tool

Delivery
Grease tube, 13 mm quick-action drill chuck, replacement SDS-plus drill chuck, additional handle, 310 mm depth stop, in tool case


Brand: BOSCH
Model: GBH set 4-32 DFR
Max. impact energy: 4,2 J
Max. impact rate: 3600 rpm
Min./max. impact rate: 0-3600 U/min(rpm)
Power input: 900 W
Max. recommended drilling diameter in concrete: 32 mm
Max. drilling diameter in wood: 32 mm
Max. drilling diameter in steel: 13 mm
Max. core drill bit diameter: 90 mm
Tool holding device: Suitable for SDS-plus / change drill chuck
Idle speed 1st gear min./max.: 0-800 U/min(rpm)
Weight: 4,7 kg
With rubber-coated handle: Yes
With electronic feedback: No
With soft start: No
With chisel function: Yes
With reverse switch off: No
With restart protection: No
Idle speed 1st gear max.: 800 rpm
Idle speed 1st gear min.: 0 rpm
Included in delivery: - Tool case
- Additional handle
- Depth stop
- SDS-plus replacement chuck
- Quick-action drill chuck
Type: GBH set 4-32 DFR

Manufacturer part no.: GBH 4-32 DFR-SET

EAN no.: 3165140463096

Product Datasheet
