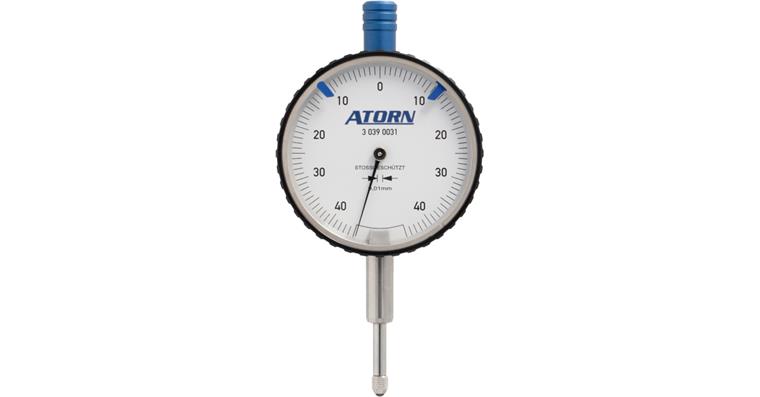

ATORN safety dial gauge scale interval 0.01 mm meas. range 0.8 mm

ATORN safety dial gauge scale interval 0.01 mm meas. range 0.8 mm

ATORN safety dial gauge scale interval 0.01 mm meas. range 0.8 mm
Item no: 1033024 701

Online price:

Available in 6-8 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Measuring pin and clamping shank are made of durable stainless steel
  • Tolerance marks for clear identification of the set tolerance fields
  • Comfortable lifting sleeve with additional dust protection function

Advantage
Gauge slide with ceramic ball (minimum wear, not electrically conductive)

Delivery
in a case


Brand: ATORN
Length measuring range: 0,8 mm
Scale value: 0,01 mm
Error limit: 7 µm
Free stroke: 9 mm
Outer diameter: 58 mm
Shock protection: Yes
Material of outer ring: Metal
Rotating housing: No
IP protection class: IP 40
Measurement force: 1,0 N
DIN: 878

ATORN-No.: 30390031

EAN no.: 4066107038656
