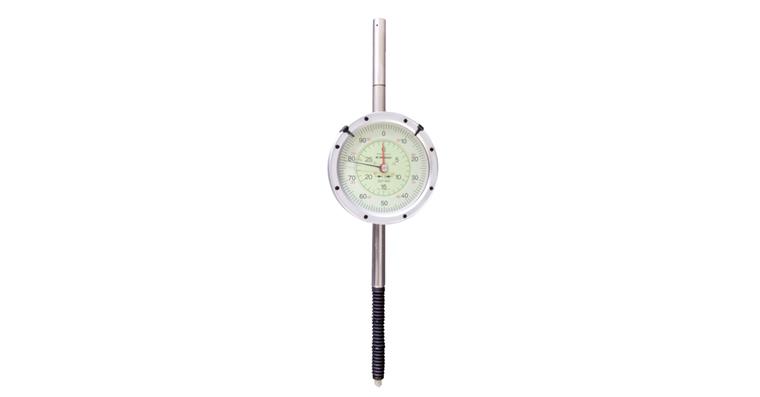

Dial gauge reading 0.01mm factory standard water + oil-tight MR 30mm dia. 61.5mm

Dial gauge reading 0.01mm factory standard water + oil-tight MR 30mm dia. 61.5mm

Dial gauge reading 0.01mm factory standard water + oil-tight MR 30mm dia. 61.5mm
Item no: 1033025 105

Online price:

Available in 6-8 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • With large measuring range
  • Nickel-plated metal housing
  • Line scales with knurled outer ring, rotatable by 360° to the pointer zero position
  • 2x adjustable tolerance marks
  • 2x pointers (small pointer is arranged concentrically as an absolute mm display for clear reading)
  • Essential points of the measuring element are embedded in sapphire, ruby or ceramic perforated blocks
  • Hardened and ground clamping shank and measuring pin made of stainless steel, interchangeable gauge slides
  • Replaceable indicator contact points

Advantage
Measuring gear protected against liquids, contamination and hard impacts

Notes
For special probe, see art. no. 1033114.

Brand: HHW
Length measuring range: 30 mm
Digit increment: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 61,5 mm
Shank diameter: 8 mm
IP protection class: IP 67
Shock protection: Yes
Material of outer ring: Metal
Rotating housing: No
Shaft length: 35 mm
Other standard: Company standard
Calibration Group: C
Scale value: 0,01 mm

EAN no.: 4024496080915
