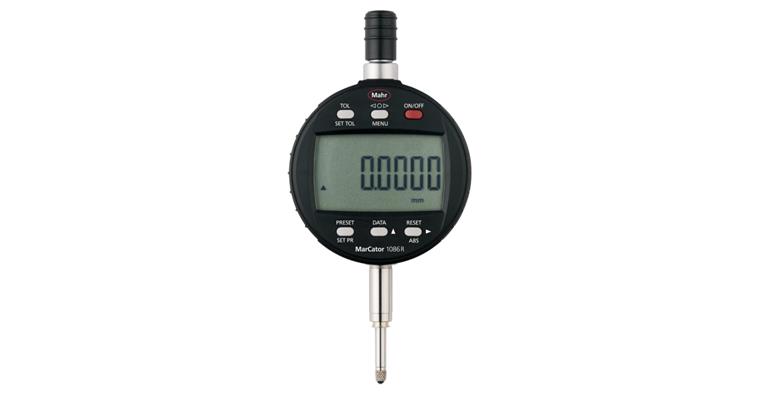

Digitale Messuhr 100 mm/0,0005 mm 1086 R

Versions

Item no: 1033086 504

Online price:

Catalogue price: You save:

Available in 6-8 working days.

Min. order quantity: 1

Application
Zum Messen von Längen und Längendifferenzen, z.B. Rundlauf-, Ebenheits-, Lagemessungen.

Execution

Für statische Messungen
Kontrastreiche LCD-Anzeige
Bedien- und Anzeigeteil um 280° drehbar
Einspannschaft und Messbolzen aus rostfreiem, gehärtetem Stahl
Sofort messbereit durch Reference-System
Funktionen: ON/OFF, RESET (Nullsetzen der Anzeige), mm/inch, Zählrichtungsumkehr, PRESET (Maßvoreinstellung), TOL (Toleranzeingabe), <0> (Modus der Toleranzanzeige), ABS (Anzeige kann auf Nul gesetzt werden ohne den Bezug zum Preset zu verlieren), DATA (in Verbindung mit Datenverbindungskabel), Faktor (einstellbar), LOCK (individuelle Tastensperre)

Delivery
Bedienungsanleitung
Batterie (Typ CR 2032)

Notes
Verbindungskabel siehe Art.-Nr. 1035200 404-406.
Weitere Größen auf Anfrage lieferbar.

Brand: MAHR
Length measuring range: 100 mm
Max. length measuring range in inches: 4 in
Digit increment: 0,0005 mm
Digit increment in inches: 0,00002 in
Error limit: 0,008 mm
Data transmission type: Cable
Min./max. measurement force: 1.8-3.5 N
Repeat accuracy: 0,001 mm
IP protection class: IP 42
Dynamic measurement: No
Rotating housing: Yes
Digit height: 11 mm
Calibration Group: CD
Other standard: Company standard

Manufacturer part no.: 4337623

EAN no.: 4059192014520

Product Datasheet
