Anzeigegeräte 2-Achsen für Glasmaßstab Linear Scale

Anzeigegeräte 2-Achsen für Glasmaßstab Linear Scale

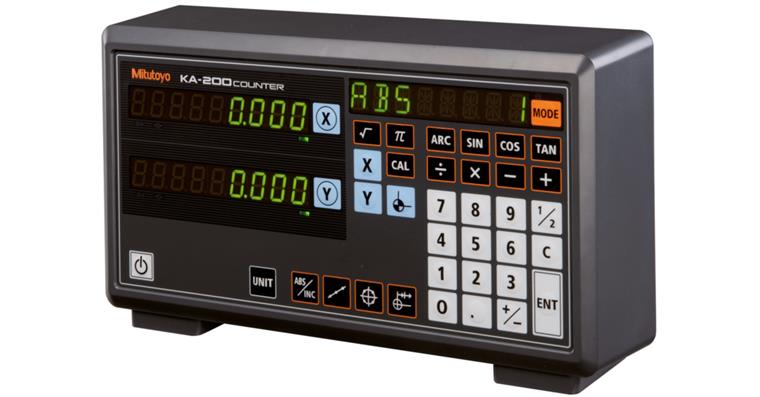

1033108200 Anzeigegeräte 2-Achsen für Glasmaßstab Linear Scale
Item no: 1033108 200

Online price:

Available in 11-13 working days.

Application
For retrofitting e.g. conventional machine tools with digital indicators.

Execution
  • This indicator shows length information transferred from a linear scale
  • Can be used as a 'standard indicator' or 'lathe indicator' by changing the parameters
  • Sub-display for simple operation.
  • Two axes can be connected
  • Properties: Feed speed indicator, taper machining function, tool data, multi-point compensation, scale testing function, calculation function
  • Functions: Diameter indicator, 1/2 calculation, mm/inch, bore machining, scale reference point, linear error compensation, zero approach function (INC coordinates), adding values from two axes, switching coordinate system, hide last digit, adjust measurement direction, memory backup, clearance machining, compensation
  • Macro function: Perpendicular boring and round milling

Delivery
1x display unit
Power cable
Operating instructions


Brand: MITUTOYO
Calibration Group: On demand
Type: Anzeigeeinheit für 2 Achsen
Width: 260 mm
Height: 167 mm
Depth: 80 mm

Manufacturer part no.: 174-183D

EAN no.: 4946368693538

Product Datasheet
