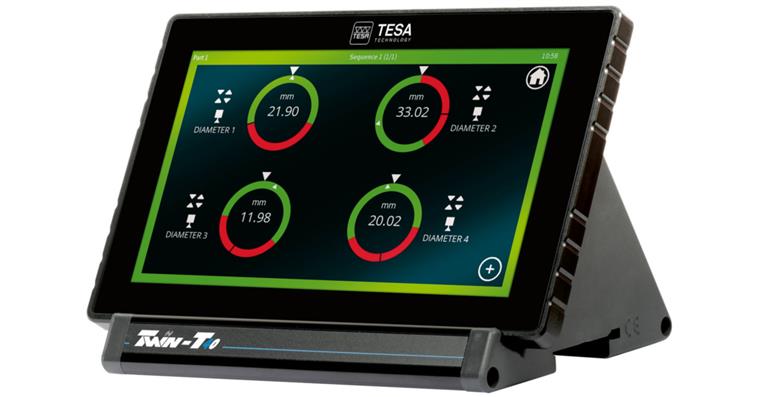

TWIN-T40 Anzeigegerät

TWIN-T40 Anzeigegerät

TWIN-T40 Anzeigegerät
Item no: 1033115 104

Online price:

Available in 6-8 working days.

Application
Mobile electronic display unit for mains-independent measurement display from electronic half-bridge length measuring probe.

Execution
  • Four measurement displays
  • Display unit with four TESA probe inputs
  • Robust, suitable for use both in labs and in workshops
  • Compatible with a wide range of probes and measuring instruments
  • Large colour display for ease of reading in low light
  • Four different display types (bar display, rotating displays, round displays, galvanometer)
  • Touchscreen operation
  • Functions: MAX, MIN, MAX-MIN, median, (MAX-MIN)/2, mean value, TOL, auto calibration, LOCK, storage of two measurement programs, mathematical functions for calculation of multiple plungers with contact point

Delivery
1x display unit
1x power adapter + power cable
4x power cable plugs - EU, UK, USA, CH
Self-test report
Calibration certificate


Brand: TESA TECHNOLOGY
Calibration Group: On demand
Width: 190 mm
Height: 119 mm
Depth: 112 mm
Measuring range of electronic length measuring technology: +/- 5 µm | +/- 20 µm | +/- 50 µm | +/- 200 µm | +/- 500 µm | +/- 2 mm | +/- 5 mm
Scale value, electronic display unit: 0.1 µm
Digit increment, electronic display unit: 0.1 µm
Data transmission type: Cable | Bluetooth
Data cable type: P1 | P2 | V1 | W1 | X1
Measured value memory: Yes
Number of measuring sensor connections: 4 PCS
IP protection class: IP 65

Manufacturer part no.: 04430015

EAN no.: 7630041149869

Product Datasheet
