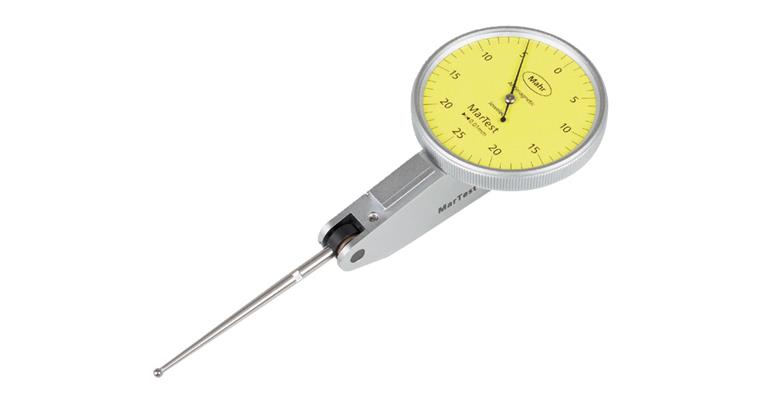

Lever gauge probe MarTest 800 SL reading 0.01 mm measuring range 0.25 mm

Lever gauge probe MarTest 800 SL reading 0.01 mm measuring range 0.25 mm

1033240202 Lever gauge probe MarTest 800 SL reading 0.01 mm measuring range 0.25 mm
Item no: 1033240 202

Online price:

Still in stock: 1

Application
Measuring deviations in concentricity, axial run-out, parallelism and flatness. Centring of shafts or bores and parallel or perpendicular alignment of workpieces.

Execution
  • High-contrast dial, sealed by O-ring
  • Brushed chromium-plated protective housing with 3 integrated dovetail strips
  • Shock-resistant measuring mechanism
  • Anti-magnetic design
  • Automatic adaptation to the probe direction, resulting in error-free reading
  • Double lever supported by ball bearings, overload protection through slip clutch
  • Gauge slide with carbide ball
  • Accuracy according to factory standard

Delivery
1x dial test indicator
1x case
1x wrench
Indicator contact point dia. 2 mm
Operating instructions
Clamping shank 800a8

Notes
Measuring probe, see art. no. 1033243.

Brand: MAHR
Length measuring range: 0,25 mm
Type: Standardausführung
Scale value: 0,01 mm
Diameter: 28 mm
Length of measuring sensor from centre of ball: 41,24 mm
Measurement force: 0,07 N
Connection thread: M2
Data transmission type: 0 - not applicable
Ball diameter: 2 mm
Pivot range of measuring sensor: 220 Degree
Calibration Group: L
Other standard: Company standard

Manufacturer part no.: 4306200

EAN no.: 4059192013523

Product Datasheet
