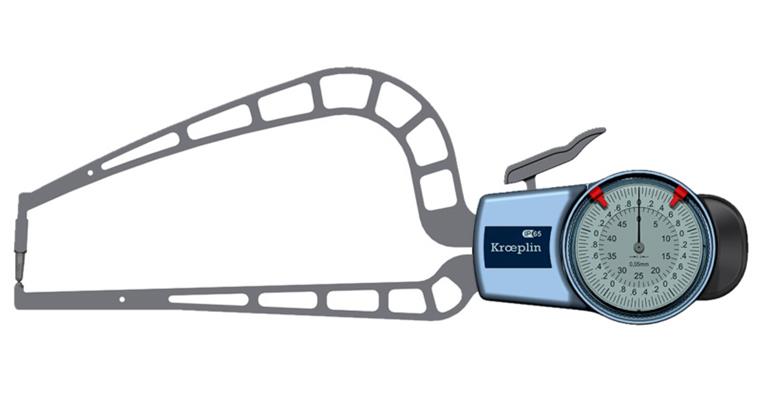

External quick probe with carbide ball dia. 3.0 mm D4R50 MR 0-50 mm

External quick probe with carbide ball dia. 3.0 mm D4R50 MR 0-50 mm

External quick probe with carbide ball dia. 3.0 mm D4R50 MR 0-50 mm
Item no: 1033435 204

Online price:

Available in 11-13 working days.

Application
Applications
For rugged use in workshops for thickness and external measurement.

Execution
  • Absolute measuring instrument with damped drive and steel thread transmission for greater precision and a longer service life
  • 50 % higher display resolution compared to earlier generations
  • Reliable reproducibility of the display
  • Clear, easy-to-read scales and tolerance marks
  • Protected against dirt and dripping water

Delivery
1x measuring gauge
1x cardboard box
Factory test certificate
Operating instructions


Brand: KROEPLIN
Calibration Group: Q
Min./max. length measuring range: 0-50 mm
Min./max. measurement force: 0.8-1.7 N
Measuring arrangement: 18
Measuring depth: 169 mm
Type: D4R50
Error limit: 0,05 mm
IP protection class: IP 65
Display: Analogue
Measuring contact length movable: 30,0 mm
Measuring contact length fixed: 4,3 mm
Max. length measuring range: 50 mm
Min. length measuring range: 0 mm
Digit increment: 0,05 mm
Max. measurement force: 1,7 N
Min. measuring force: 0,8 N
Repetition limit: 0,025 mm

Manufacturer part no.: D4R50

Product Datasheet
