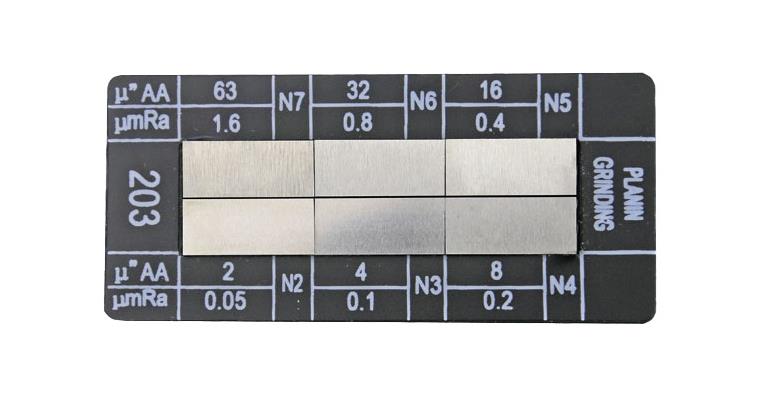

Surface specimen plate face grinding, 6 reference specimens N2-N7

Surface specimen plate face grinding, 6 reference specimens N2-N7

1033890201 Surface specimen plate face grinding, 6 reference specimens N2-N7
Item no: 1033890 201

Online price:

Available in 6-8 working days.

Application
For comparative testing of the surface quality by visual and tactile examination (with fingernail), in accordance with standards ISO/R 468, ISO 2632/1 1975 and NF E 05-051.

Execution
For comparative testing of the surface quality

Notes
These specimen plates efficiently illustrate the various surface types that are achieved with machines that are used in industry.
Calibration service is not available for this item.

Brand: ---
Machining method: Flat grinding
Number of comparative patterns: 6 PCS
Min./max. Ra comparison range: 0.05-1.6 µm
ISO surface roughness categories: N2 | N3 | N4 | N5 | N6 | N7
Min. Ra comparison range: 0,05 µm
Max. Ra comparison range: 1,6 µm

EAN no.: 4054469146270

Product Datasheet
