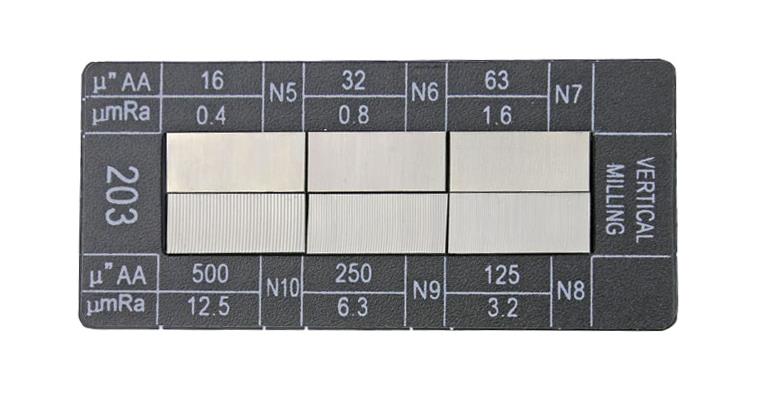

Surface specimen plate face milling, 6 reference specimens N5-N10

Surface specimen plate face milling, 6 reference specimens N5-N10

Surface specimen plate face milling, 6 reference specimens N5-N10
Item no: 1033890 203

Online price:

Available in 6-8 working days.

Application
For comparative testing of the surface quality by visual and tactile examination (with fingernail), in accordance with standards ISO/R 468, ISO 2632/1 1975 and NF E 05-051.

Execution
For comparative testing of the surface quality

Notes
These specimen plates efficiently illustrate the various surface types that are achieved with machines that are used in industry.
Calibration service is not available for this item.

Brand: ---
Machining method: Front milling
Number of comparative patterns: 6 PCS
Min./max. Ra comparison range: 0.40-12.5 µm
ISO surface roughness categories: N5 | N6 | N7 | N8 | N9 | N10
Min. Ra comparison range: 0,40 µm
Max. Ra comparison range: 12,5 µm

EAN no.: 4054469146294

Product Datasheet
