testo 417 digital impeller anemometer with measuring funnels

testo 417 digital impeller anemometer with measuring funnels

testo 417 digital impeller anemometer with measuring funnels
Item no: 1033990 104

Online price:

Available in 6-8 working days.

Application
For simple, fast and precise measurement of flow velocity, volume flow and temperature in ventilation ducts in air-conditioning and ventilation systems

Execution
  • Volume flow measuring range:
    • 0 to +99,999 m³/h

    • 0 to +440 m³/h (testo 417 in conjunction with funnel set [0563 4170])

    • 0.1 to +200 m³/h, preferably 0.1 to 100 m³/h (testo 417 in conjunction with funnel and straightener [0554 4172])
  • Volume flow resolution:
    • 0.1 m³/h (0 to +100)

    • 1 m³/h (remaining measuring range)
  • Flow impeller accuracy:
    • ±(0.1 m/s + 1.5 % of measured value)
  • For simple, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
  • Efficient adjustment of controlled domestic ventilation systems and rapid documentation with the testo Smart app
  • Fast in-app configuration, graphic progression display, second screen and measurement data memory in the testo Smart app
  • Time-based and specific averaging

Delivery
  • testo 417 - 100 mm impeller anemometer with app connectivity

  • Measuring funnel for poppet valves

  • Measuring funnel for ventilation grilles

  • Transport bag

  • Calibration log

  • 3 x AA batteries



Brand: TESTO
Type: testo 417
Min./max. current of measuring range: 0.3-20 m/s
Digit increment, current: 0,01 m/s
Min./max. working temperature: -20 to 50 °C
Max. current of measuring range: 20 m/s
Max. working temperature: 50 °C
Min. current of measuring range: 0,3 m/s
Min. working temperature: -20 °C
Battery designation: 1.5 V Mignon AA
Digit increment (measuring instrument for temperature): 0,1 °C
Height: 45 mm
IP protection class: IP 40
Length: 236 mm
Max. temperature measuring range: 50 °C
Min. temperature measuring range: 0 °C
Min./max. temperature measuring range: 0 to 50 °C
Width: 108 mm

Manufacturer part no.: 0563 1417

EAN no.: 4029547025815

Product Datasheet
Keywords: Strömungsmessgerät,Anemometer,

You might also be interested in this

  • Thermo-Anemometer testo 405
  •
    testo 417 digital impeller anemometer dia. 100 mm with app connection
  •
    Vane kit 100 mm testo 440 with Bluetooth
  •
    Flow combination kit 2 testo 440 delta P with Bluetooth
  •
    testo 417 digital impeller anemometer with measuring funnels and straightener
  •
    Vane anemometer TESTO 410i measuring range 0.4-30 m/s
  •
    Screw tap extension type TE3 length 130 mm
  •
    3/4 inch locking pin for impact screwdriver
  •
    High-pressure gauge testo 549i with smartphone operation
  •
    1 inch locking pin for impact screwdriver
  •

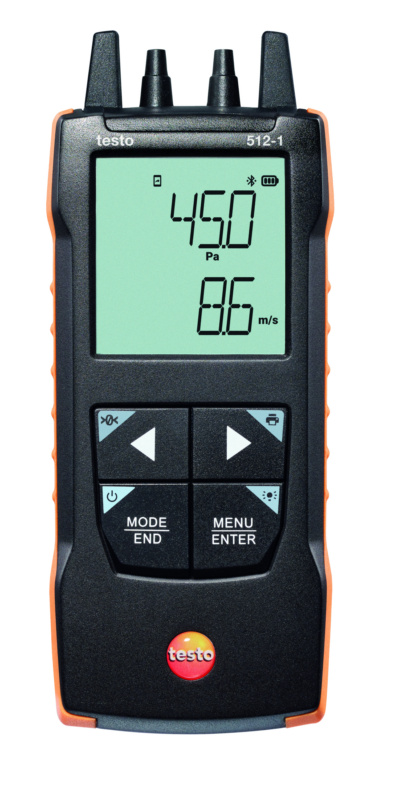

    testo 512-1 differential pressure measuring instrument up to 200 hPa
  •
