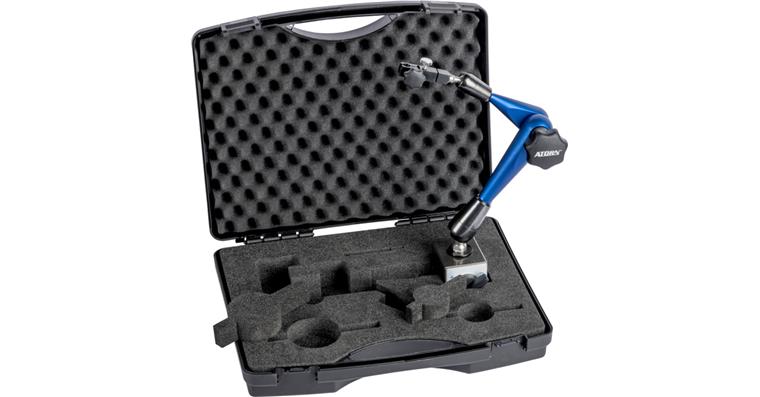

ATORN 3D articulated measuring stand, 390/290 mm, case set

ATORN 3D articulated measuring stand, 390/290 mm, case set

ATORN 3D articulated measuring stand, 390/290 mm, case set
Item no: 1034026 302

Online price:

Available in 6-8 working days.

Application
For clamping dial gauges, precision pointers, lever gauge probes etc. Available as a case set for assembly or other mobile applications e.g. maintenance, mobile calibrations etc. The case offers space for carrying up to two dial gauges or lever gauge probes.

Execution
  • Mechanical, maintenance-free central clamping mechanism
  • Dovetail mount and 8 mm dia. mount (6 mm dia. possible with adapter)
  • Powerful holding magnet with prismatic base
  • In plastic case with foam insert
  • Foam insert has recesses for a dial gauge with an external diameter of 40 mm and a dial gauge with an external diameter of 60 mm

Advantage
  • simple, quick operation
  • high degree of manoeuvrability, exact positioning


Brand: ATORN
Height: 390 mm
Operation radius: 280 mm
Retaining force: 36 N
Adherence strength: 800 N
Base size: 60 x 50 x 55 mm
Overall height: 390 mm
Fine adjustment: Yes

ATORN-No.: 31089317

EAN no.: 4066107030568
