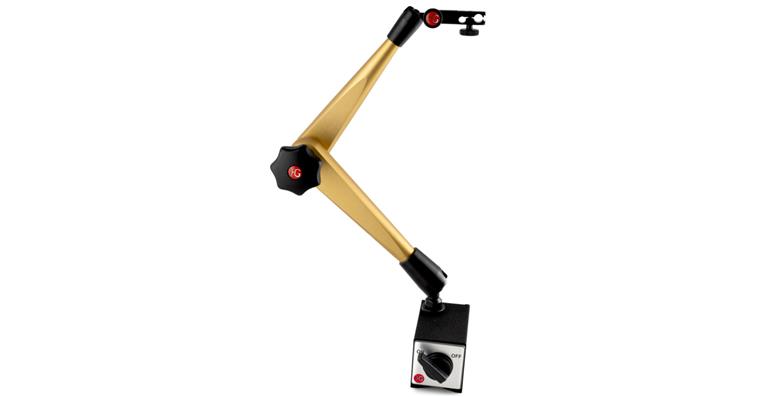

Hydraulisches Magnet-Messstativ 400 mm mit mechanischer Feineinstellung

Hydraulisches Magnet-Messstativ 400 mm mit mechanischer Feineinstellung

Hydraulisches Magnet-Messstativ 400 mm mit mechanischer Feineinstellung
Item no: 1034031 104

Online price:

Available in 6-8 working days.

Application
For clamping dial gauges, dial indicators, dial test indicators etc.

Execution
  • With hydraulic central clamping and fine adjustment
  • The articulated arms can be rotated and swivelled through 360°
  • Combined mount for dial gauges, electronic plungers with contact point and shank dia. 8 mm and dial test indicators with dovetail mount
  • Version with switching magnet (except art. no. 1034031 100 with permanent magnet)

Advantage
Hydraulic articulated measuring stands offer high retention force

Notes
The specified retention force refers to safety-related applications.

Brand: HÖRGER&GÄSSLER
Operation radius: 400 mm
Adherence strength: 1000 N
Retaining force (sicherheitsrelevante Haltekraft): 88 N
Base size: 80 x 50 x 55 mm
Base height: 55 mm
Design: Magnetic | Hydraulic
Connection thread: M6
Connection thread 2: M10
Fine adjustment: Yes

Manufacturer part no.: 106306

EAN no.: 4260180710953
