Digital height measuring device MICRO-HITE 350 manual

Digital height measuring device MICRO-HITE 350 manual

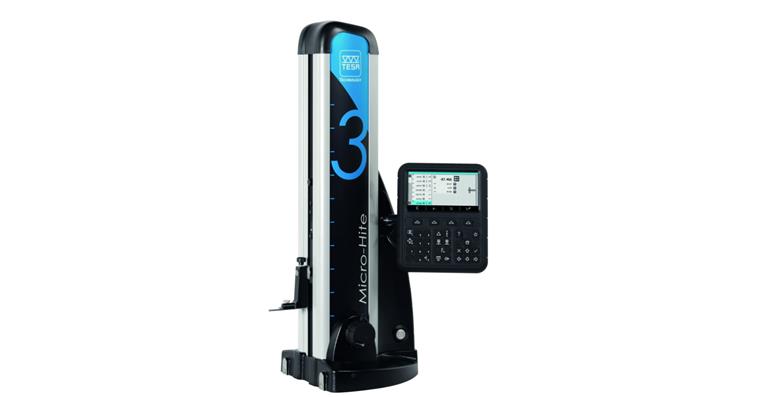

1035081101 Digital height measuring device MICRO-HITE 350 manual
Video
Item no: 1035081 101

Online price:

Available in 6-8 working days.

Application
For measuring external, internal, height, depth, step and distance dimensions on geometric elements with flat, plane-parallel and circular cylindrical surfaces in 1D or 2D coordinate directions. Dynamic measuring processes with max., min. and max.-min. memory functions. Optional via TESA IG-13 measuring probe for perpendicularity, straightness and parallelism deviations.

Execution
  • Manual measuring slide movement using handwheel
  • Hybrid control panel with backlit keypad and colour touchscreen display
  • Air cushion activation for easy movement
  • QuickCenter functionality for efficient determination of the reversal points
  • Fortschrittliche Funktionen für ein multifunktionales, für verschiedenste Benutzer geeignetes Gerät
  • Klare Ergebnisse, um mögliche Fehler aufgrund schlechter Auswertung der angezeigten Ergebnisse zu verringern
  • Automatisches Anlegen von pdf-Berichten oder txt-Dateien auf dem USB-Stick
  • Luftkissenaktivierung für leichtes Verschieben
  • Basis auf Gusseisen

Advantage
  • Hybrid control panel allows "classic" operation via keypad, as well as "modern" operation via touchscreen
  • New QuickCenter technology simplifies measuring bores and shaft diameters
  • Intelligent context menu supports the process by providing specific information and aiding the user as they perform measuring tasks
  • Measurement result display clearly presents large amounts of information
  • Flexible data management, allowing for easy data export

Delivery
1x height measuring instrument incl. control panel
1x standard test indicator shank
1x standard indicator contact point with carbide ball dia. 5 mm
1x reference piece
Power supply and cable
SCS certificate
Declaration of conformity
Quick start guide
Operating instructions on USB stick

Notes
For connection cable, see art. no. 1035200 315, 316.
For wireless data transmission, see art. no. 1035200 501-503.

Brand: TESA TECHNOLOGY
Calibration Group: M
Type: Micro-Hite 350
Length measuring range: 365 mm
Min./max. application area with standard gauge slide carrier: 0-520 mm
Digit increment (can be pre-selected): 0.1 mm | 0.001 mm | 0.0001 mm
Height gauge error limit: 2 + 2L/1000 (L in mm )
Repeat accuracy of drill hole: 1 µm
Repetition accuracy, level: 1 µm
Perpendicularity tolerance (front): 7 µm
Min./max. measurement force: 1.35-1.85 N
Max. battery operating time: 8 h
Data transmission type: Cable | Bluetooth
With air cushion equipment: Yes
Weight: 33 kg
Max. application area with standard gauge slide carrier: 520 mm
Max. measurement force: 1,85 N
Measurement force: 1,6 N
Min. application area with standard gauge slide carrier: 0 mm
Min. measuring force: 1,35 N

Manufacturer part no.: 00730073

EAN no.: 7630041129892

Product Datasheet
Versions
loading
