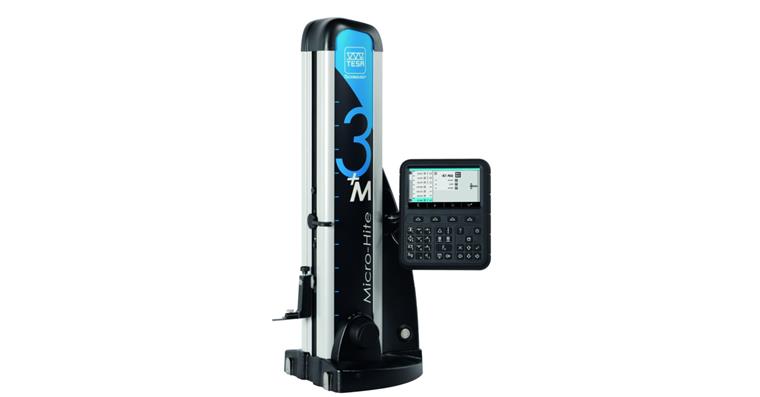

TESA TECHNOLOGY - Digital height measuring device MICRO-HITE+ M 350 motorised

Application
For measuring external, internal, height, depth, step and distance dimensions on geometric elements with flat, plane-parallel and circular cylindrical surfaces. Measurement of diameters using automatic recording of the reversal point of bores and shafts (TESA QUICKCENTER patented measuring system). It is also possible to measure in two coordinate directions. Dynamic measuring processes are possible using max., min. and max.-min. memory functions. The TESA IG-13 measuring probe can optionally be used to output additional perpendicularity, straightness and parallelism deviations.

Execution

Control panel with touchscreen or via operator keypad
Quick, easy and reliable measurements, especially for bores
Zero setting at any position
With motorised measuring slide
Air cushion system for easy movement on the measuring plate (at the push of a button)
Klare Ergebnisse, um mögliche Fehler aufgrund schlechter Auswertung der angezeigten Ergebnisse zu verringern
Automatisches Anlegen von pdf-Berichten oder txt-Dateien auf dem USB-Stick
Luftkissenaktivierung für leichtes Verschieben
Basis auf Gusseisen

Advantage

Automatic correction for very high accuracy
Suitable for measurements on the production line or in the laboratory
aufladbarer und austauschbarer Akku (ca. 8h pro Akku)
Kostenloses SCS-Zertifikat, zur Vermeidung jeglicher Mehrkosten für erneute Zertifizierung des Geräts nach dem Kauf

Delivery
1x height measuring instrument incl. control panel
1x standard test indicator shank
1x standard indicator contact point with carbide ball dia. 5 mm
1x reference piece
Power supply and cable
SCS certificate
Declaration of conformity
Quick start guide
Operating instructions on USB stick

Notes
For connection cable, see art. no. 1035200 315, 316.
For wireless data transmission, see art. no. 1035200 501-503.

Brand: TESA TECHNOLOGY
Calibration Group: M
Type: Micro-Hite plus M 350
Length measuring range: 365 mm
Min./max. application area with standard gauge slide carrier: 0-520 mm
Digit increment (can be pre-selected): 0.1 mm | 0.001 mm | 0.0001 mm
Height gauge error limit: 1,8 + 2L/1000 (L in mm )
Repeat accuracy of drill hole: 1 µm
Repetition accuracy, level: 0,5 µm
Perpendicularity tolerance (front): 7 µm
Min./max. measurement force: 1.35-1.85 N
Max. battery operating time: 8 h
Data transmission type: Cable | Bluetooth
With air cushion equipment: Yes
Weight: 33 kg
Max. application area with standard gauge slide carrier: 520 mm
Max. measurement force: 1,85 N
Measurement force: 1,6 N
Min. application area with standard gauge slide carrier: 0 mm
Min. measuring force: 1,35 N
