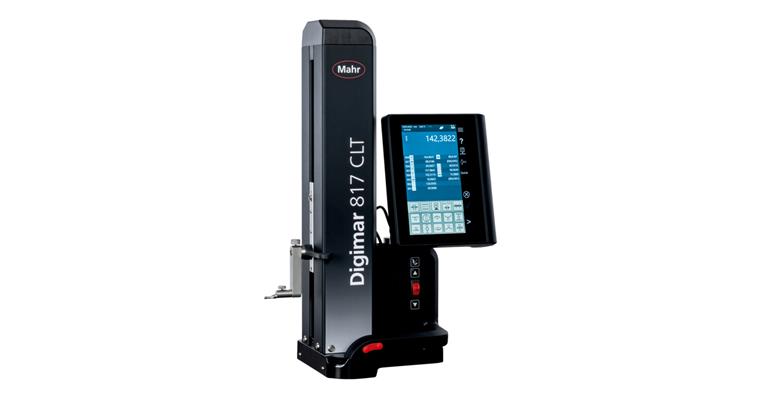

MAHR - Höhenmessgerät 350 mm Digimar 817 CLT

Application
For measuring external, internal, height, depth and distance dimensions, as well as diameters and reversal points in bores and shafts. In addition, for a variety of measuring functions in two coordinate directions, such as recording dynamic straightness and perpendicularity deviations

Execution

10-inch touch control panel for simple, convenient operation via large operating keys
Integrated dynamic thumbwheel for fast and precise positioning
Fast and reliable execution of measurements and calculation functions
Logs can be saved directly to the device as a PDF
Wireless transmission of measurement value lists to Bluetooth printers
Transfers measured values wireless or via USB using the proven and reliable MarConnect interface
Simple creation of measurement programs (via teach-in or drag-and-drop)
Air bearing system for easy, smooth movement
Temperature compensation possible via the integrated temperature sensor
Functions: Probing at the bottom or top, bar width or groove distances, including bar or groove centre, hole or shaft diameter, including hole or shaft centre, reversal point holes (top or bottom), reversal point shaft (top or bottom), calculate distances/symmetry, dynamic measuring functions, perpendicular measurement, straightness measurement, 2D function

Advantage

Future-proof thanks to update capability
Additional measuring device can be connected with MarConnect USB interface

Delivery
1x height measuring instrument including operating and display element
1x carrier
1x indicator contact point
1x setting block
USB cable
Operating instructions
Mains charger
Protective cover
Calibration certificate

Brand: MAHR
Calibration Group: M
Type: Digimar 817 CLT 350 mm
Length measuring range: 350 mm
Min./max. application area with standard gauge slide carrier: 0-520 mm
Digit increment (can be pre-selected): 0.01 mm | 0.005 mm | 0.001 mm | 0.0005 mm | 0.0001 mm
Height gauge error limit: 1.8 + L/600 (L in mm)
Repeat accuracy of drill hole: 0,001 mm
Repetition accuracy, level: 0,0005 mm
Perpendicularity tolerance (front): 5 µm
Min./max. measurement force: 0.8-1.2 N
Max. battery operating time: 14 h
Data transmission type: Wireless | USB
With air cushion equipment: Yes
Weight: 22,2 kg
Max. application area with standard gauge slide carrier: 520 mm
Max. measurement force: 1,2 N
Min. application area with standard gauge slide carrier: 0 mm
Min. measuring force: 0,8 N
