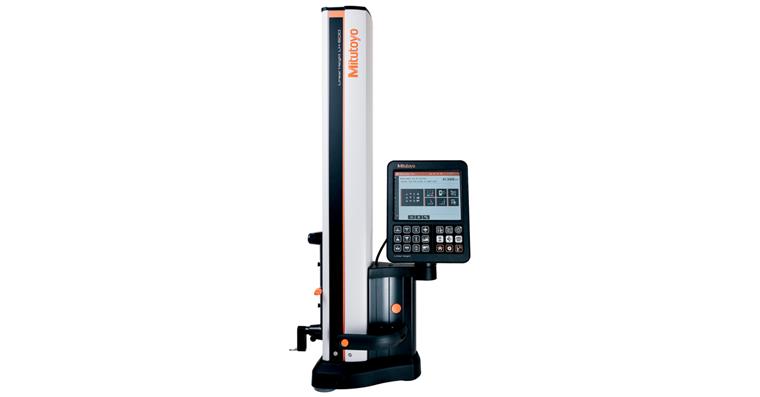

Digitales Höhenmessgerät 0-600 mm LH-600F

Digitales Höhenmessgerät 0-600 mm LH-600F

Digitales Höhenmessgerät 0-600 mm LH-600F
Item no: 1035093 101

Online price:

Available in 11-13 working days.

Application
For measuring external, internal, height, depth and distance dimensions, as well as diameters and reversal points in bores and shafts. In addition, for a variety of measuring functions in two coordinate directions, such as recording dynamic straightness and perpendicularity deviations

Execution
  • Measurements can be carried out on the hybrid display with touchscreen (8.4 inches) and integrated membrane keyboard
  • Measurements can be printed out on a receipt printer or Digimatic printer (DP-1VA) and sent to a PC wirelessly, by USB cable or USB stick
  • Pneumatic drive mechanism
  • Automatic running of 'learnt' parts programmes
  • Excellent visualisation of GO/±NG tolerance comparisons
  • Motor-driven traverse method (5, 10, 15, 20, 25, 30, 40 mm/s)/manual
  • Air bearing

Advantage
  • Bidirectional Digimatic data output (Digimatic S1)
  • LH communication tool available for free download

Delivery
1x height measuring instrument
1x setting block
1x ball probe


Brand: MITUTOYO
Calibration Group: M
Type: Linear Height LH-600F
Length measuring range: 600 mm
Min./max. application area with standard gauge slide carrier: 0-977 mm
Digit increment (can be pre-selected): 0.0001 mm | 0.001 mm | 0.01 mm | 0.1 mm
Height gauge error limit: 1,1 + 0,6L/ 600) µm (L in mm)
Repeat accuracy of drill hole: 0,0009 mm
Repetition accuracy, level: 0,0004 mm
Perpendicularity tolerance (front): 5 µm
Max. battery operating time: 4 h
Data transmission type: Wireless | Cable | Bluetooth
With air cushion equipment: Yes
Weight: 26,1 kg
Max. application area with standard gauge slide carrier: 977 mm
Measurement force: 1 N
Min. application area with standard gauge slide carrier: 0 mm

Manufacturer part no.: 518-360-13

EAN no.: 4550501366366
