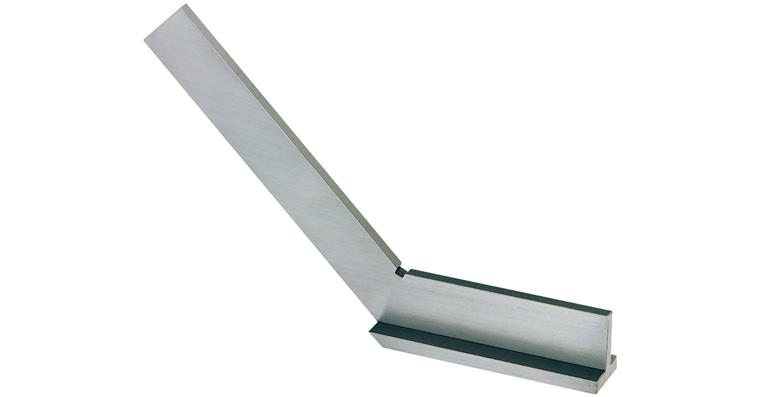

ATORN mitre try square, 135°, 200x130 mm, sim. to DIN 875, for 90° steel angles

ATORN mitre try square, 135°, 200x130 mm, sim. to DIN 875, for 90° steel angles

ATORN mitre try square, 135°, 200x130 mm, sim. to DIN 875, for 90° steel angles
Item no: 1036176 103

Online price:

Available in 8-10 working days.

Application
For precise 45° mark-off and inspection for 90° corner joints

Execution
  • Test and side surfaces finely ground
  • Made from special steel


Brand: ATORN
Limb length x limb length 2: 200 x 130 mm
Angle: 135 Degree
Type: Mitre try square
Material: Unhardened steel
Cross-section length x cross-section width: 25 x 5 mm
Flatness tolerance of side length: 33 µm
Flatness tolerance side length 2: 29 µm
Straightness tolerance side length: 33 µm
Straightness tolerance side length 2: 29 µm
Angularity tolerance external angle: 75 µm

ATORN-No.: 31058110

EAN no.: 4050293158205

Product Datasheet
