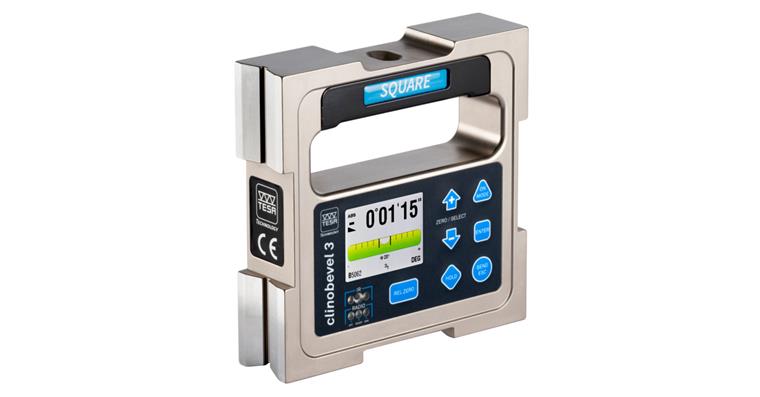

Digitales Neigungsmessgerät CLINOBEVEL 3 SQUARE 60° 0,025 mm/m

Digitales Neigungsmessgerät CLINOBEVEL 3 SQUARE 60° 0,025 mm/m

1038005201 Digitales Neigungsmessgerät CLINOBEVEL 3 SQUARE 60° 0,025 mm/m
Item no: 1038005 201

Online price:

Available in 6-8 working days.

Application
Zum schnellen und einfachen Messen von Neigungen im Absolut- und Vergleichs-Messverfahren.

Execution
  • 4 geschliffene Messflächen
  • Grauguss-Modell rostgeschützt
  • Großformatige Digitalanzeige vermeidet Fehler durch Falschinterpretation
  • Zur Direkt- (Absolute Messung) oder Vergleichsmessung (Relative Messung)
  • Messbereich ±60° mit Angabe des Winkels oder der Neigung
  • Fehlergrenze: 15″ + (0,027 % x Messwert)
  • Funktionen: Anzeige Konfigurationen, Absoluten Nullpunkt-Modus, Relative Nullpunkt-Modus, Anzeige einfroren, einstellbare Alarme (bei Grenzwertüberschreitung)
  • Einheiten: mm/m, „/10“, „/12“, mRad, mm/REL, „/REL, A%o, %o, DEG, GON

Advantage
  • Die kostenlose App "CLINOBEVEL 3" ermöglicht es, die Messung auf einem Smartphone zu visualisieren
  • Die App ermöglicht das Abspeichern von Messwerten im .csv-Format

Delivery
CLINOBEVEL 3 SQUARE
2 Kalibrierstifte für Schnell-Kalibrierung
Batterie (2x Typ LR14)
Gebrauchsanleitung
Konformitätserklärung


Brand: TESA TECHNOLOGY
Length x width x height: 160 x 40 x 160 mm
Type: TESA CLINOBEVEL 3 SQUARE
Interface: USB 2.0 type A | RS485
Measuring accuracy (per length): 0,025 mm/m
Angle measuring range: 60
Device dimensions: 160 x 40 x 160 mm
Data transmission type: Cable

Manufacturer part no.: 05330220

EAN no.: 7630041163902

Product Datasheet
