ATORN - ATORN ImageControllerBasic, 420 mm

Application
The ATORN ImageController Basic presetter with great features for excellent value for money. Adjust your tools quickly, easily and to the nearest µm. Presetters are able to withstand the rigours of workshop use and can be set up directly next to CNC machines in machining and testing centres or in measurement rooms. All important basic functions for measuring your tools, such as length, diameter, flatness and concentricity come as standard. A dynamic crosshair pointer detects and measures tool cutters automatically within the entire camera image.

Execution

High-precision SK50 spindle with integrated calibration edge, 4 x 90° indexing and 360° spindle brake
7 inch screen
Memory for 99 adapters and up to 1,000 tools
Automatic zero-point monitoring
Automatic cutting edge shape detection
Quick menu operation via rotary/push button
Compass needle - simple camera positioning for measuring set values on the tool
Dynamic crosshair for automatic measurement
USB 2.0 interface, data output via USB

Advantage

Simple operation and fast familiarisation with minimum training
Fast measurement, setting and testing of tools (length and diameter)
Fast and convenient printing of measurement results
Software function for easy creation of the tool contour
Various measurement programs are available, such as concentricity check on the tool shank, projector mode etc.

Delivery
1x ATORN ImageControllerBasic

Notes
Price: without shipping, packaging, training and commissioning.

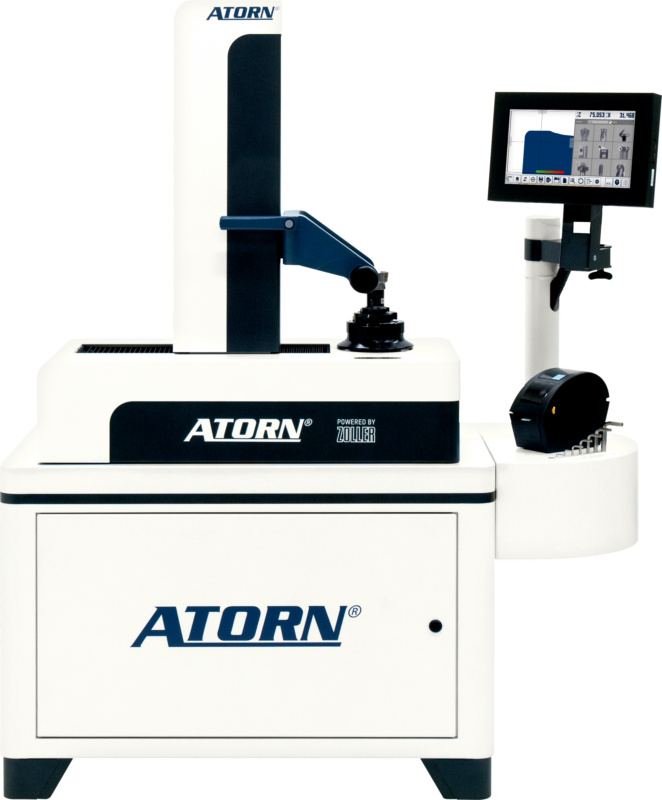

ATORN ImageControllerBasic, 420 mm

ATORN ImageControllerBasic, 420 mm
