ATORN ImageControllerBasic, 600 mm

ATORN ImageControllerBasic, 600 mm

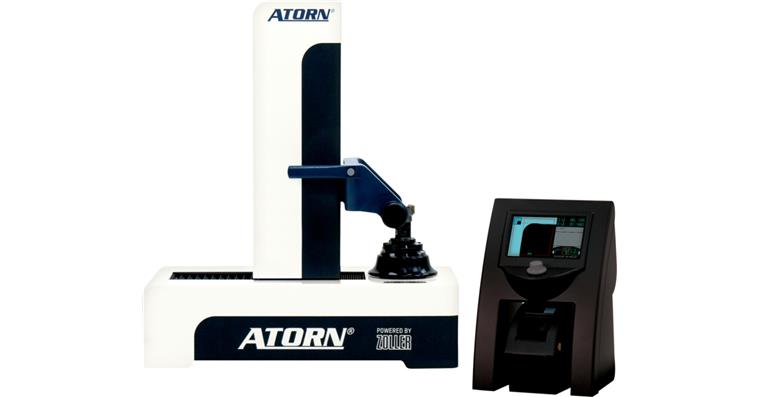

1039385503 ATORN ImageControllerBasic, 600 mm
Item no: 1039385 503

Online price:

Available in 8-10 working days.

Application
The ATORN ImageController Basic presetter with great features for excellent value for money. Adjust your tools quickly, easily and to the nearest µm. Presetters are able to withstand the rigours of workshop use and can be set up directly next to CNC machines in machining and testing centres or in measurement rooms. All important basic functions for measuring your tools, such as length, diameter, flatness and concentricity come as standard. A dynamic crosshair pointer detects and measures tool cutters automatically within the entire camera image.

Execution
  • High-precision SK50 spindle with integrated calibration edge, 4 x 90° indexing and 360° spindle brake
  • 7 inch screen
  • Memory for 99 adapters and up to 1,000 tools
  • Automatic zero-point monitoring
  • Automatic cutting edge shape detection
  • Quick menu operation via rotary/push button
  • Compass needle - simple camera positioning for measuring set values on the tool
  • Dynamic crosshair for automatic measurement
  • USB 2.0 interface, data output via USB

Advantage
  • Simple operation and fast familiarisation with minimum training
  • Fast measurement, setting and testing of tools (length and diameter)
  • Fast and convenient printing of measurement results
  • Software function for easy creation of the tool contour
  • Various measurement programs are available, such as concentricity check on the tool shank, projector mode etc.

Delivery
1x ATORN ImageControllerBasic

Notes
Price: without shipping, packaging, training and commissioning.

Brand: ATORN
Type: ATORN 600 with ICbasic
Measuring range of X axis: 420 mm
Measuring range of Z axis: 600 mm
Repeat accuracy (+/-): 0,002 mm
Concentricity tolerance: 0,002 mm
Compressed air supply: 6 bar
Max. screen slant: 7 in

ATORN-No.: 22250089

EAN no.: 4050293432701

Product Datasheet
Versions
