Application
For controlled screw tightening between 0.6 to 5.5 Nm

Execution

• Pre-set torque limiters with the values 0.6/0.9/1.2/1.4/2.0/3.0/5.0/5.5 Nm
• Precise deviation tolerance of +/- 10%
• Tactile indication and clicking noise when torque is reached
• Integrated safety clutch prevents the screw joint from being overtightened
• Coloured outer sleeve with printed torque value - The matching bit insert, which is also colour-coded, can therefore be selected without any problems.
• Carbon steel body with 43–48 HRC, electrically nickel-plated
• Industrial bit inserts made from hardened bit steel 58-60 HRC, with colour-coded rings
• Ergonomically shaped two-component screwdriver handle and two-component t-handle with optimum power transmission properties
• Precision quick-change chuck with bit lock

Advantage

• Optimum protection against overtightening sensitive screw connections
• Easy to handle thanks to the colour coding

Delivery

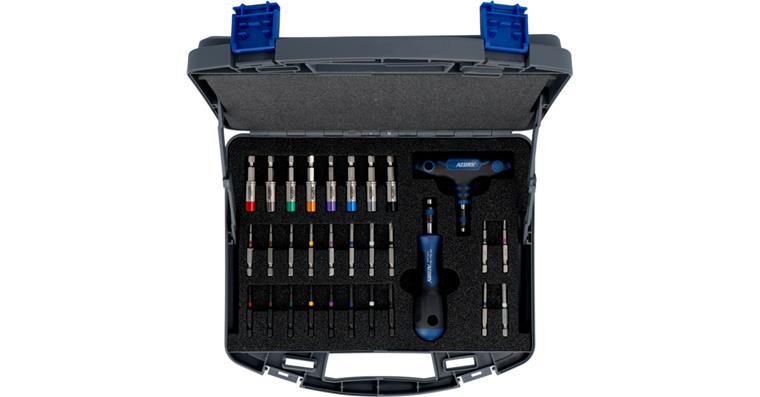

50 mm bit inserts. Sizes: TX 6, 7, 8, 9, 10, 15, 20, 25, TX plus 6, 7, 8, 9, 10, 15, 20, 25, HEX (hexagon socket) 2.0/2.5/3.0/4.0 mm

Notes
Removing screw fittings at a higher torque may result in damage to the adapter
