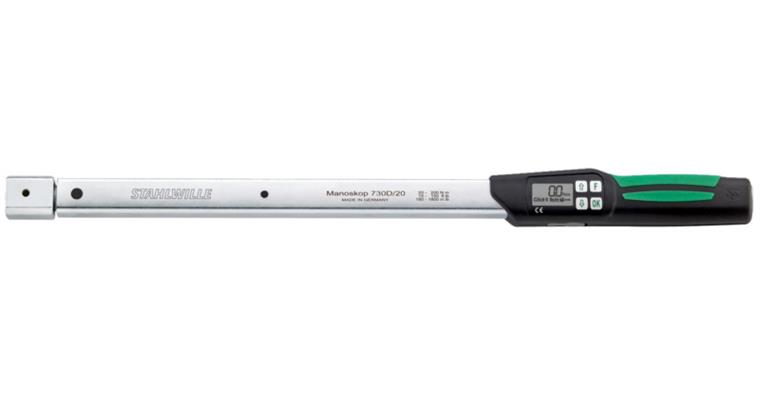

STAHLWILLE MANOSKOP 730D torque wrench, measuring range 40–400 Nm

STAHLWILLE MANOSKOP 730D torque wrench, measuring range 40–400 Nm

STAHLWILLE MANOSKOP 730D torque wrench, measuring range 40–400 Nm
Item no: 1055839 103

Online price:

Available in 4-6 working days.

Execution
  • Perceptible and acoustic release signal
  • Correct tightening torque is reached automatically after input of a different pitch
  • Different tolerance limits can be set depending on the screwing application
  • Visual evaluation of the screwing application via green and red indicator on the display
  • Additional protection of the settings (function mode, release or target value, unit of measurement, tolerance value, saving, deviating pitch) by PIN code
  • Storage of up to 7,500 screwing data entries
  • USB interface

Advantage
  • Quick setting via practical keyboard and large display
  • Automatic key lock to prevent unintentional adjustment, PIN code to prevent unauthorised adjustment
  • Overload protection by means of acoustic and visual warnings
  • Display function also for anti-clockwise torques

Delivery
In robust plastic box, two 1.5 V AA batteries.
Calibration certificate in accordance with DIN EN ISO 6789-2:2017


Brand: STAHLWILLE
Tip type: Square-cut
Min./max. torque measuring range: 40-400 Nm
Insert shank square: 14 x 18 mm
Length: 688 mm
Error limit (%): 2

Manufacturer part no.: 730D/40

EAN no.: 4018754180332

Product Datasheet
